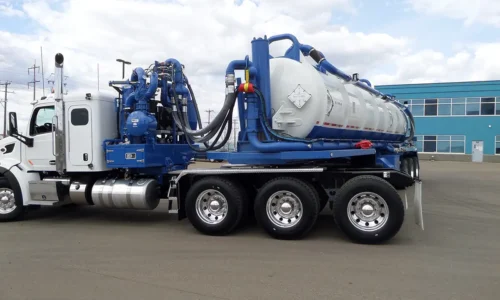

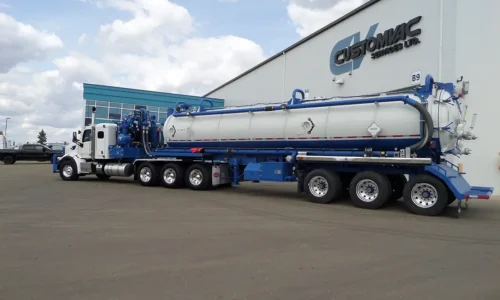

Our Line of Top Quality Vacuum Equipment

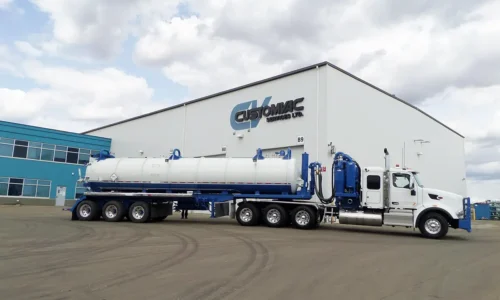

Semivac

Features

30m3 Complies with CSA B620, TC 407/412 – Current Edition

  • Capacity 30 m³ – 6600 Imp gal +/- 3% outage
  • Full opening rear door
  • 6″ heated code compliant suction and discharge valves
  • Two hydraulic vibrators
  • Hydraulic wet kit installed on truck chassis
  • Robuschi RB-DV-85 1600 CFM blower
  • 27″ Hg max vacuum
  • 320” 6 stage hydraulic dump cylinder
  • 6″ plumbing
  • Rear aluminum hose tray/ fender assembly + code rear bumper
Configurations & Specs
Contact Sales
Rigged & Ready Trucks
semivac-photo-004
semivac-photo-001
semivac-photo-003
semivac-photo-002
semivac-photo-008
semivac-photo-005
semivac-photo-007
semivac-photo-009
semivac-photo-010
semivac-photo-011
semivac-photo-012
semivac-photo-006
semivac-photo-013

Specs & Configurations

Standard Configuration

Custom Vac CV85 Vacuum System (Tri-Drive Mounted)

Design:

Tank Construction, tank design and associated equipment are compliant with Transport Canada TC407/412 CSA B620 current edition and ASME section VIII Division 1, as enforced by ABSA Boiler and Pressure Vessel Code.

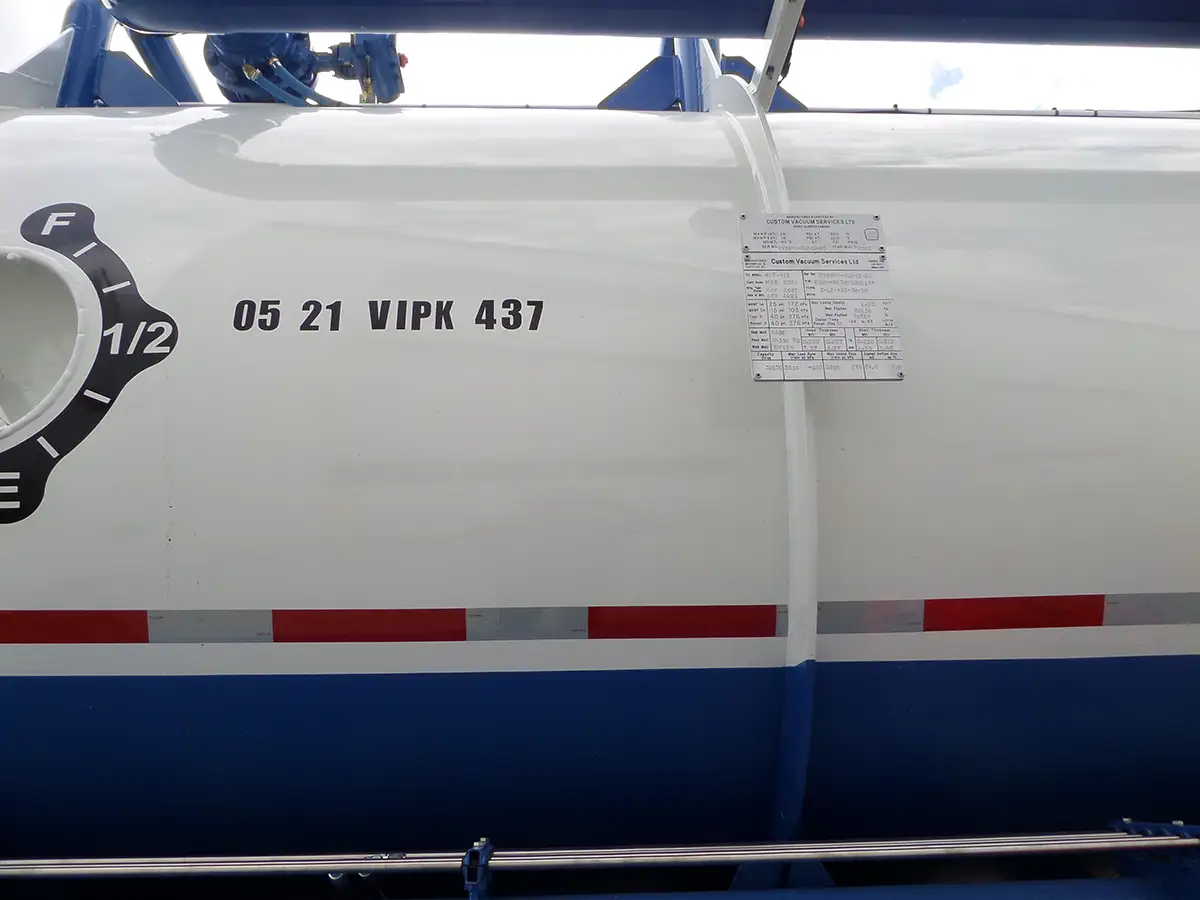

Debris Tank  30 m3 (6,600 Imperial Gallon +/- 3% Outage):

  • 72” Diameter (36’ seam to seam )
  • 72” x 1/4” Shells, 72” x 5/16” Heads
  • 10” ASME manway located top of tank
  • Two recessed debris level indicators
  • Three bolted gull wing removable baffles
  • Hydraulic hoist cylinder 30 ton capacity at final stage, 320” stroke 6 stage

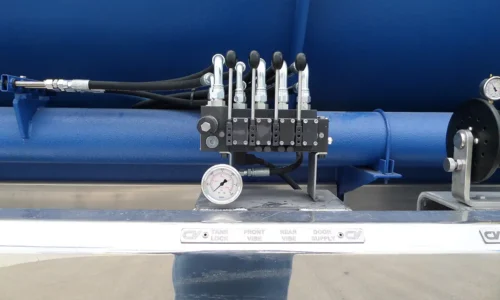

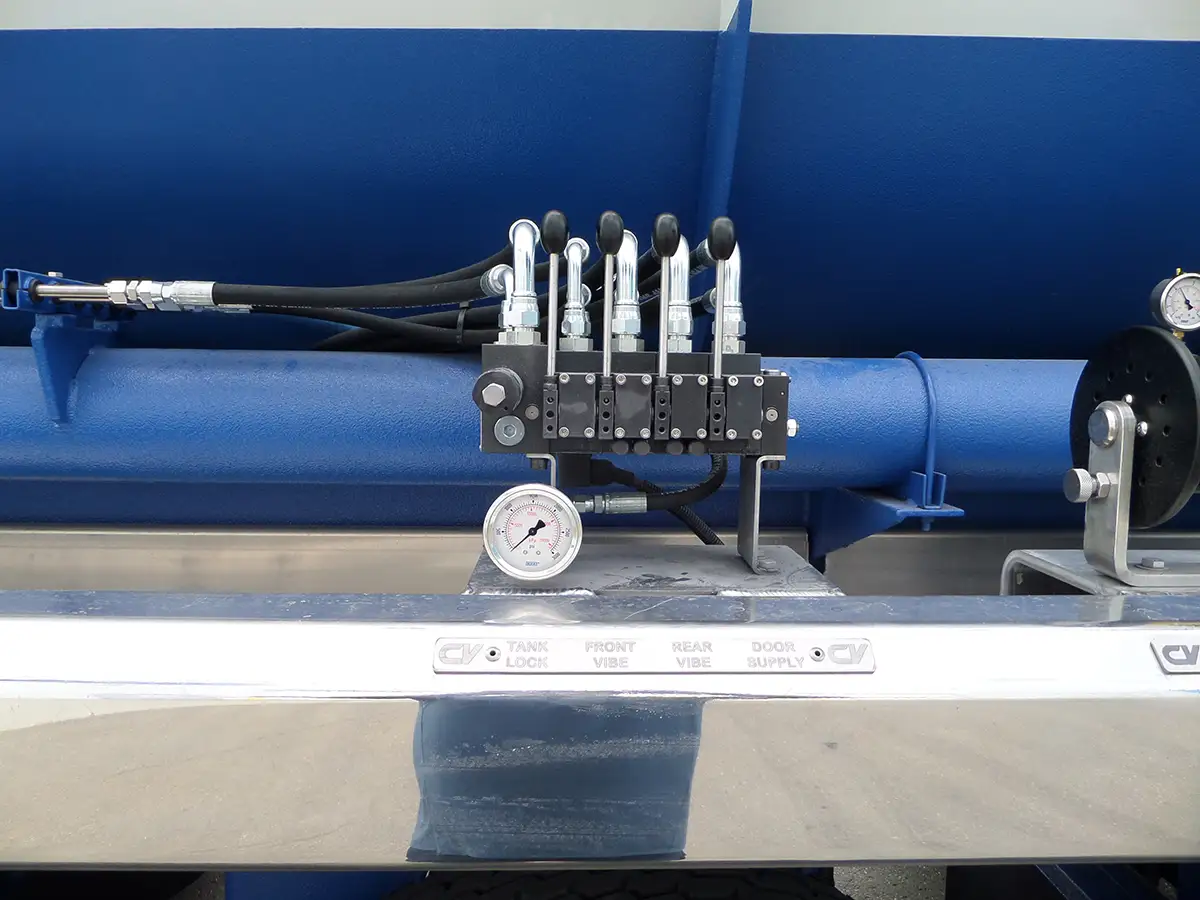

  • Two Global hydraulic vibrators
  • Full open rear hydraulic door assembly c/w top locking hinge, 6 pinwheel door locks
  • Rear door top lock assembly and tank safety post
  • Operating temperature -20 degrees F to 200 degrees F
  • 6” Betts heated load valve
  • 4” Betts heated load valve
  • 6” Betts heated discharge valve

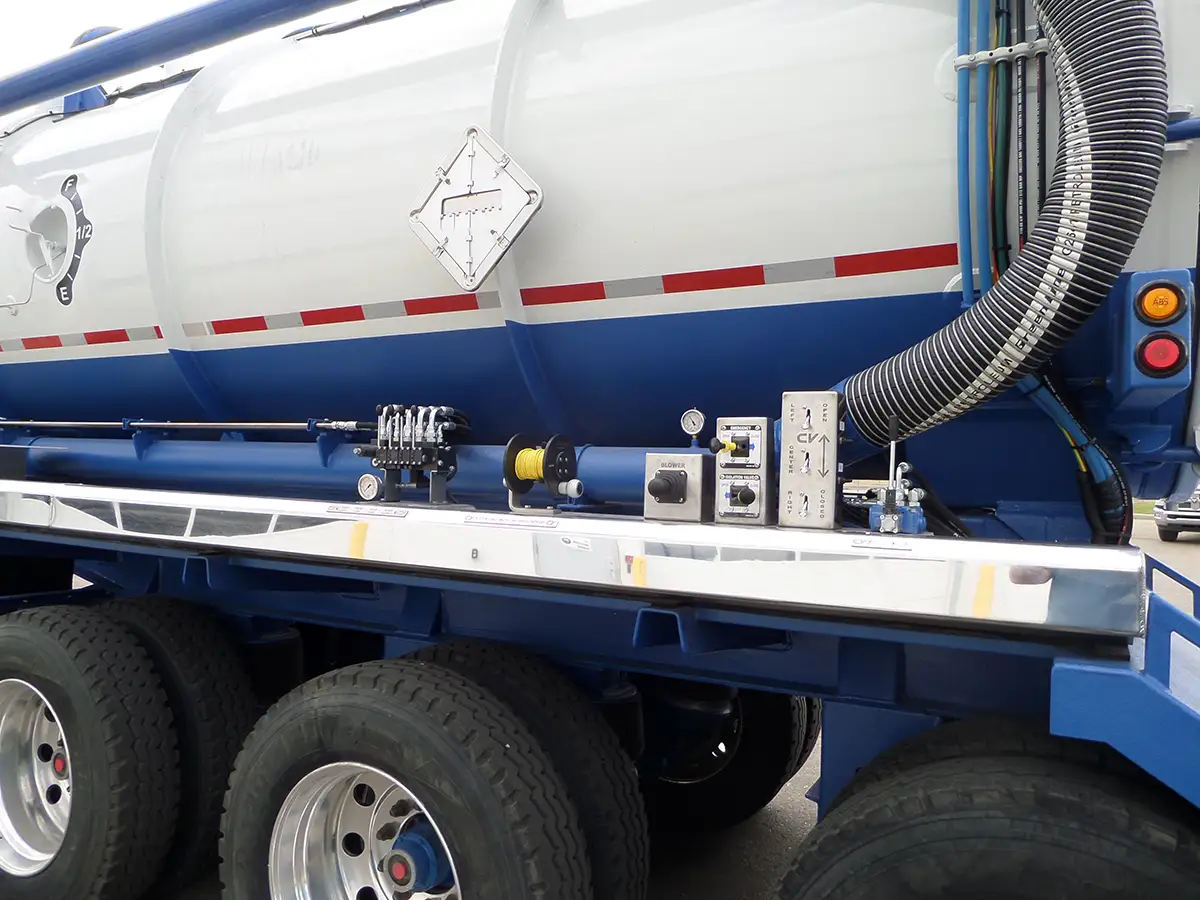

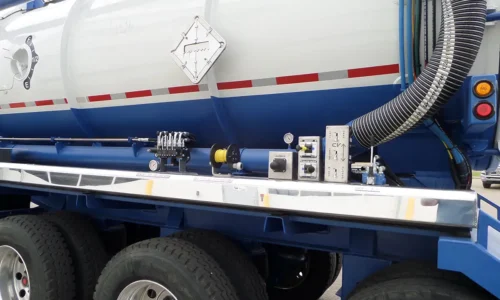

  • All rear valves heated, air actuated and equipped with flip style valve controls
  • 6” vacuum plumbing
  • 6” composite loop hose Victaulic clamped

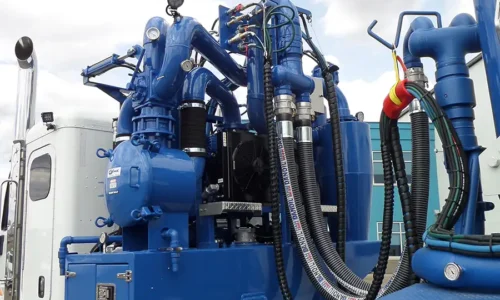

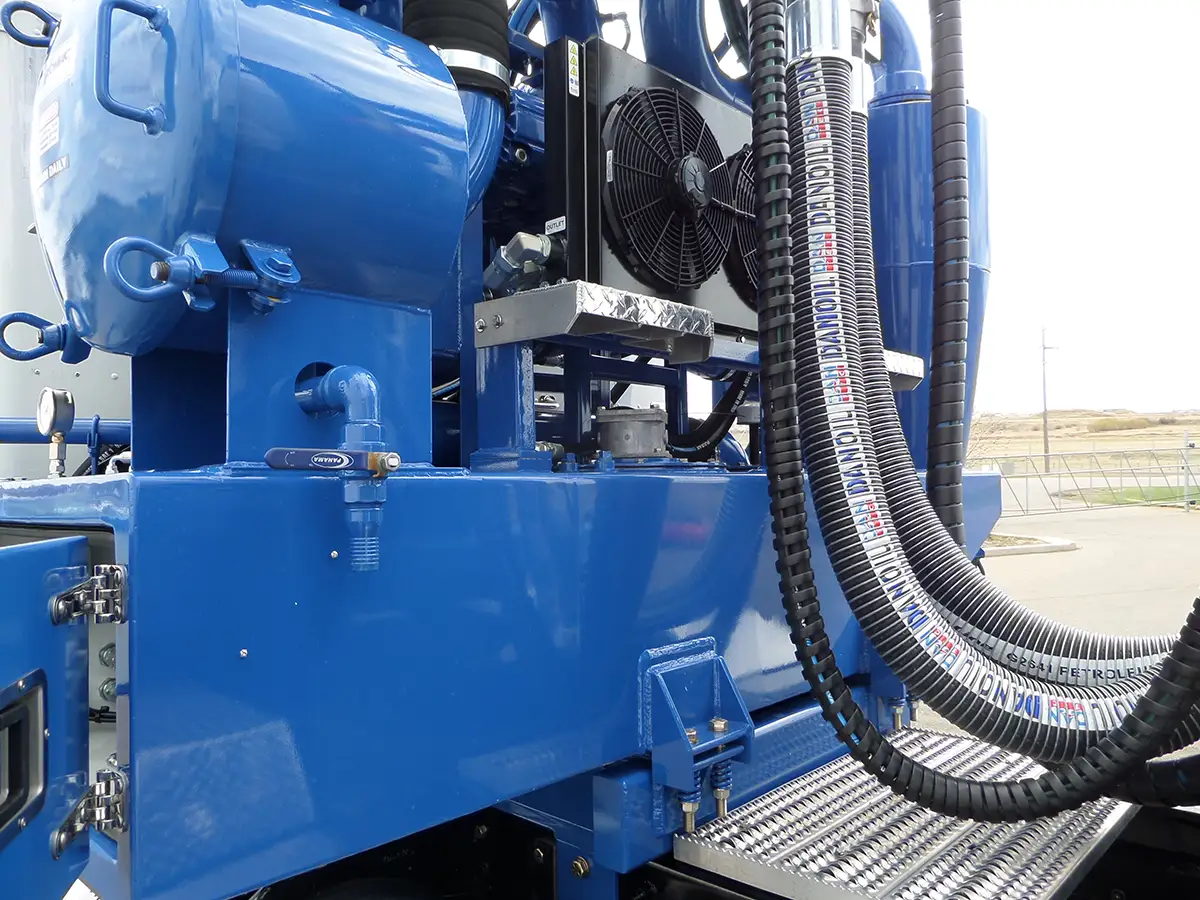

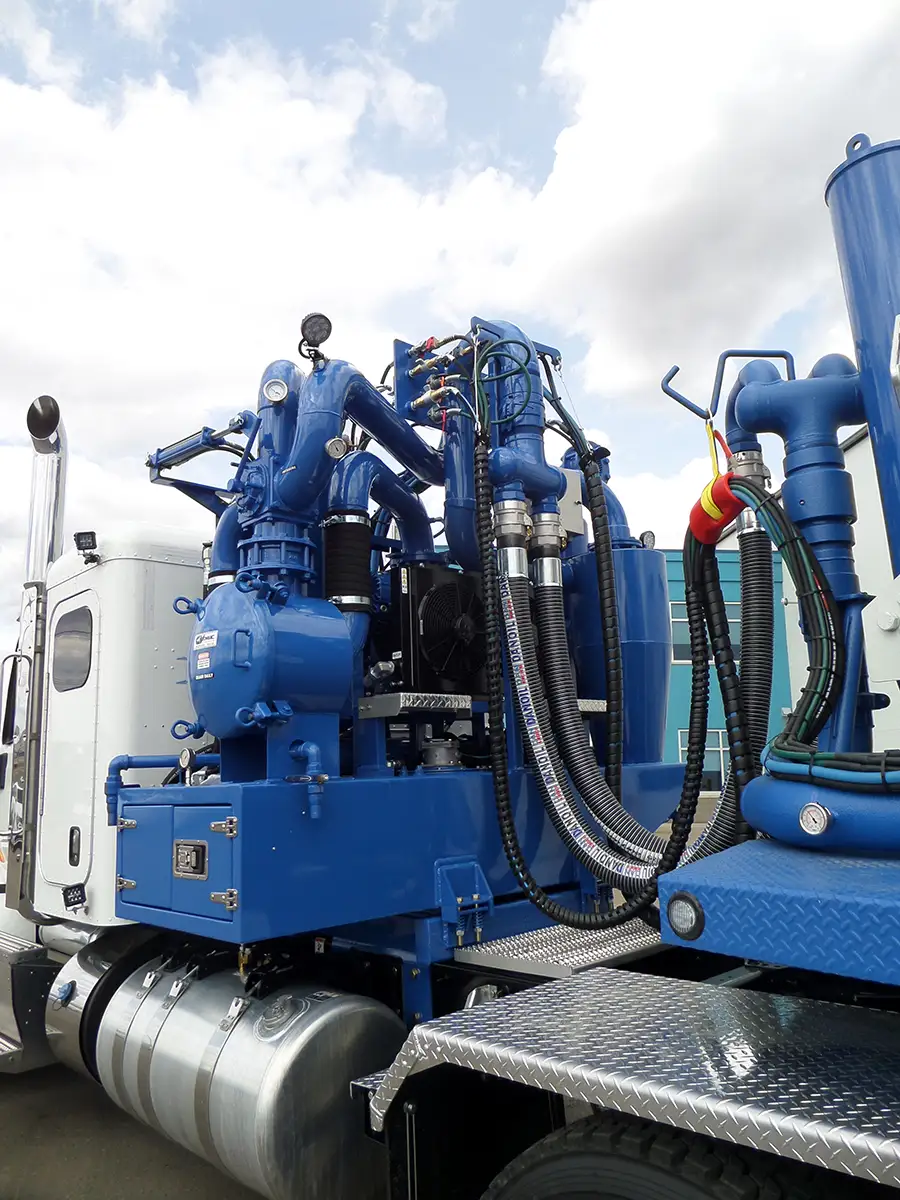

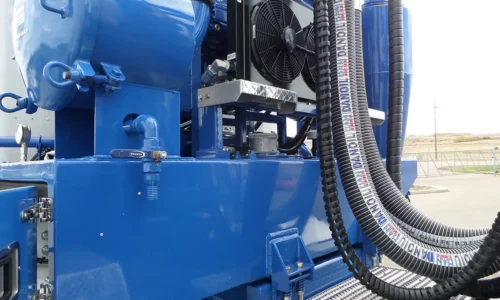

  • Robuschi RB-DV 85 High Efficiency Tri-Lobe PD Design 1600 CFM free air rating, 27” Hg maximum vacuum
  • 6” diameter with rubber hose connections to eliminate vibration
  • Oil Free Operation (except sealed reservoirs)

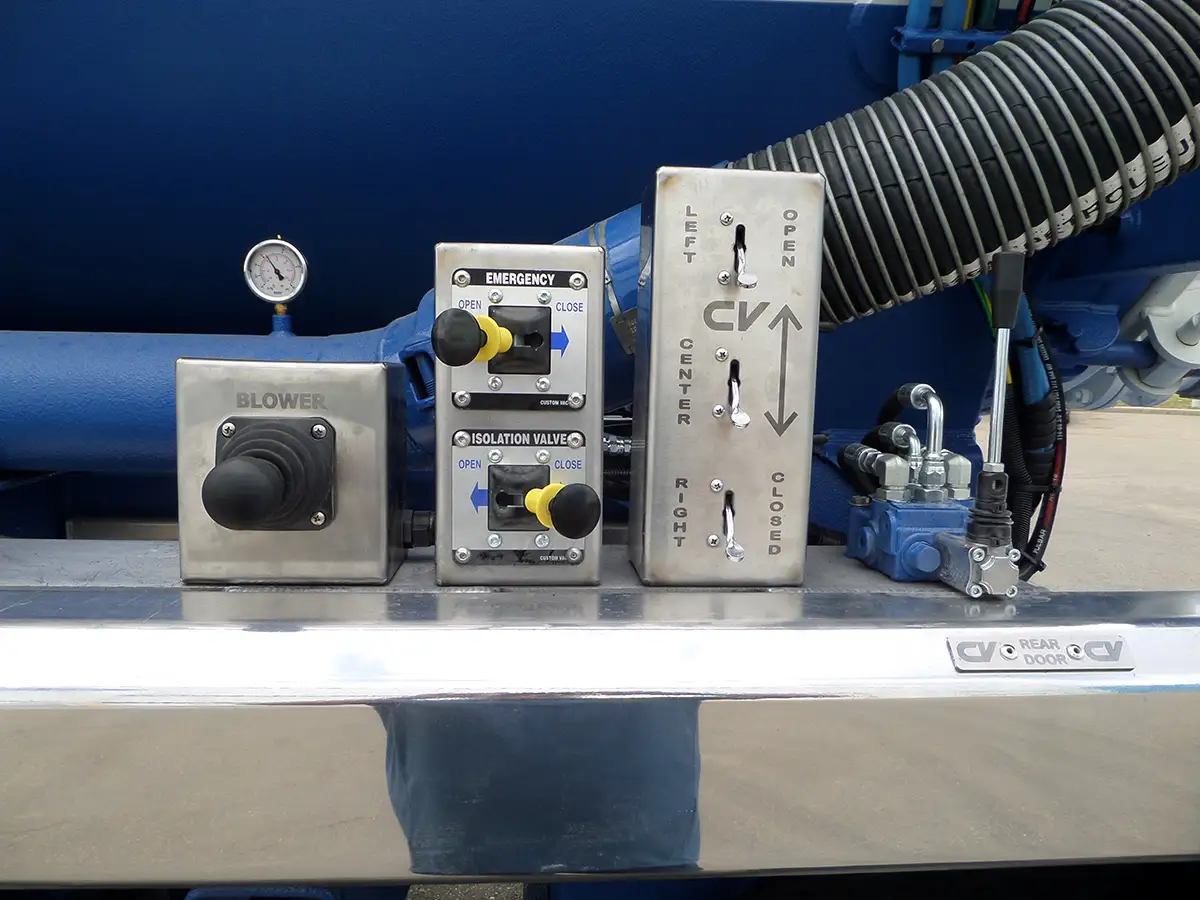

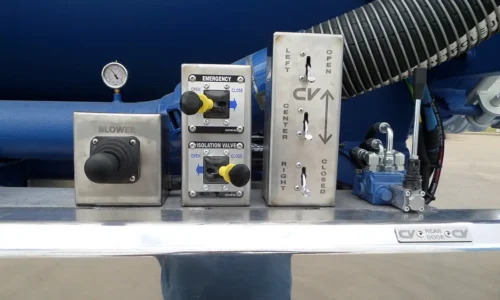

  • Electric control for proportional joystick for blower speed control on rear deck D/S
  • 6” in-line check valve assembly (to prevent blower back spin)
  • High torque/high temp blower drive coupling with flexible insert
  • Exhaust plumbed to passenger side and down along front deck
  • 20” exhaust silencer and 16” intake silencer

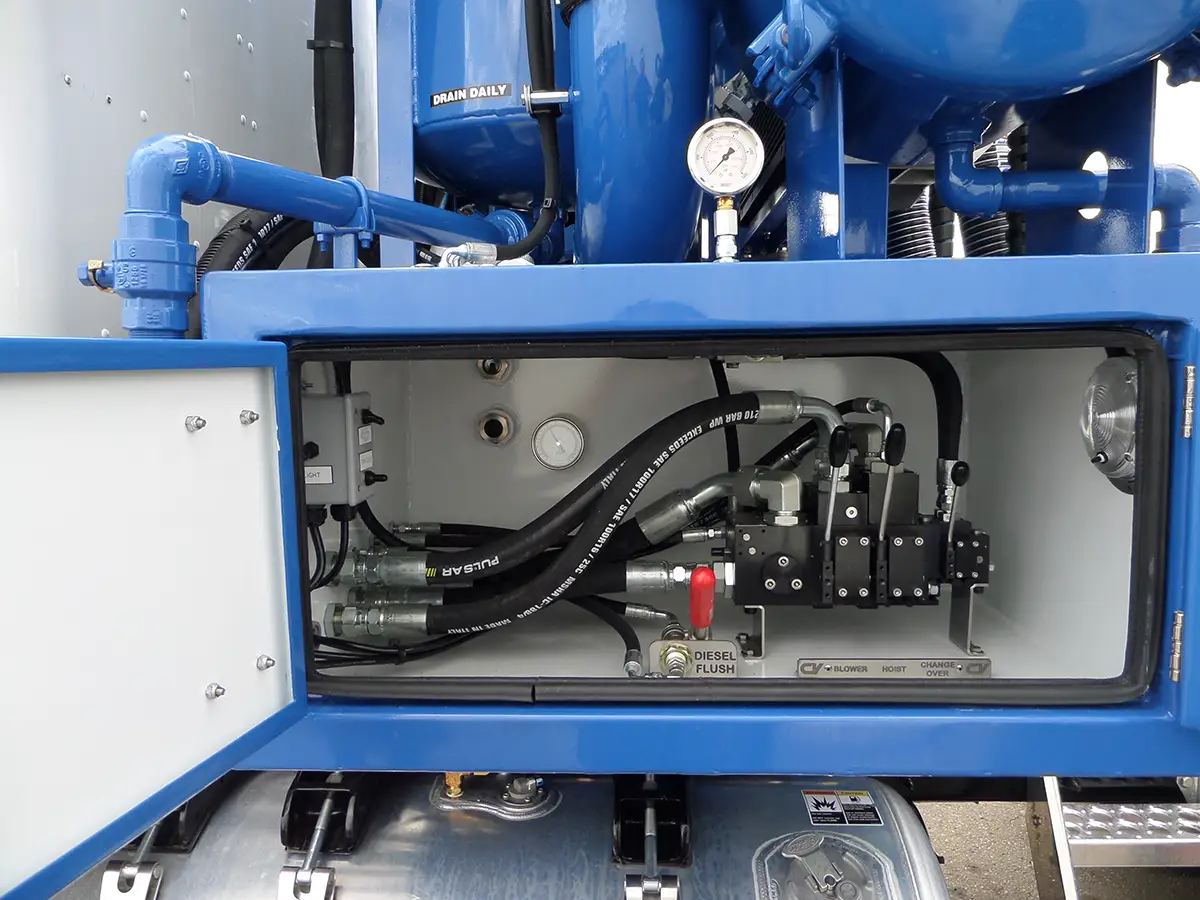

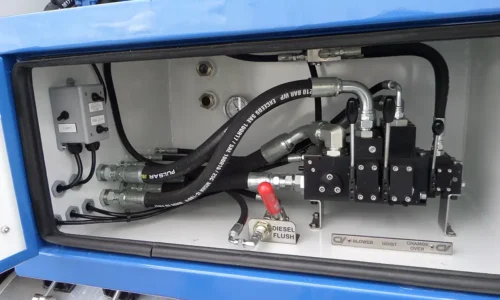

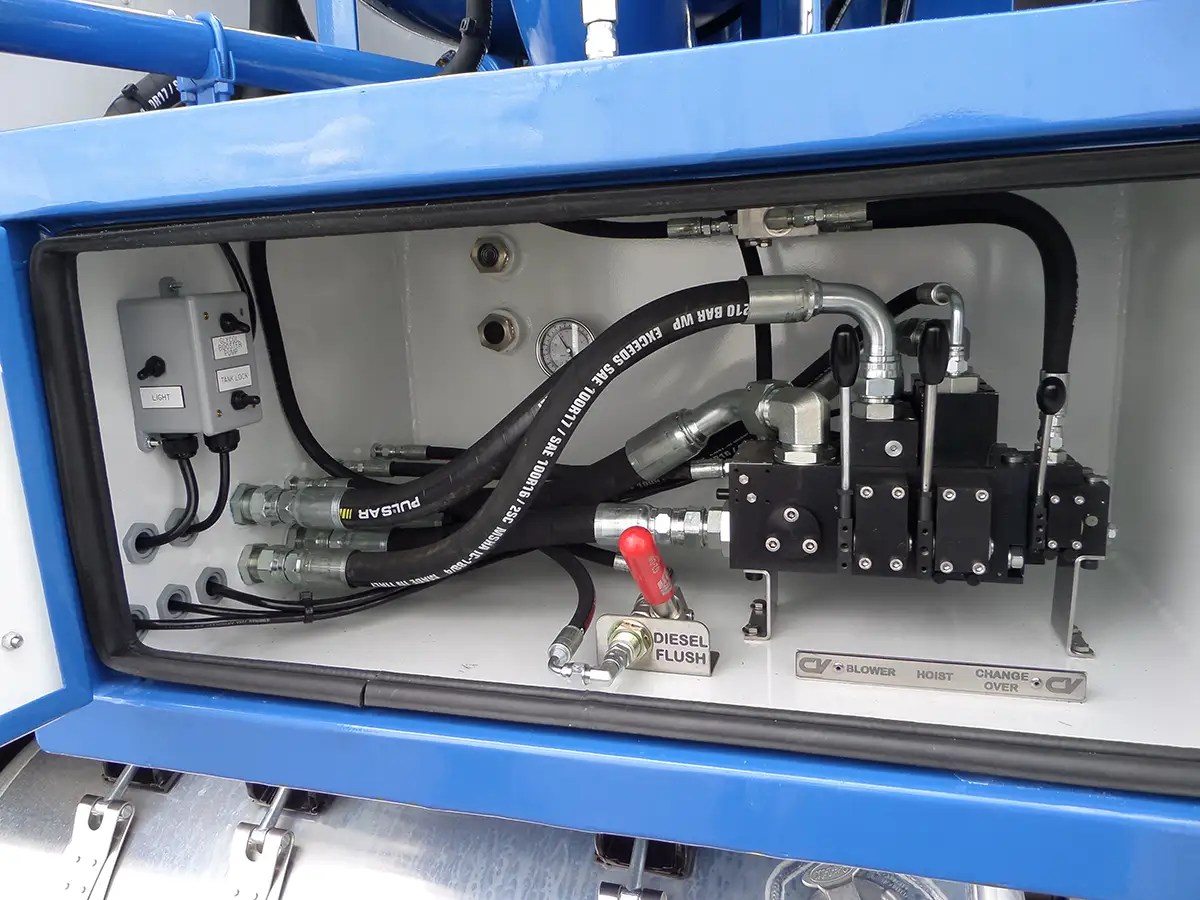

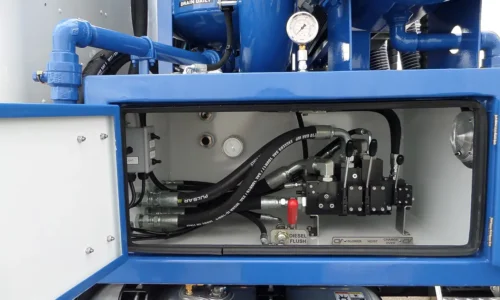

  • Diesel flush valve assembly

Paint / Coating

  • Tank and body of vacuum system will be sandblasted, primed and painted with up to 2 paint colors

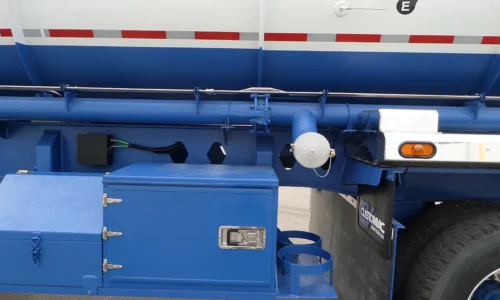

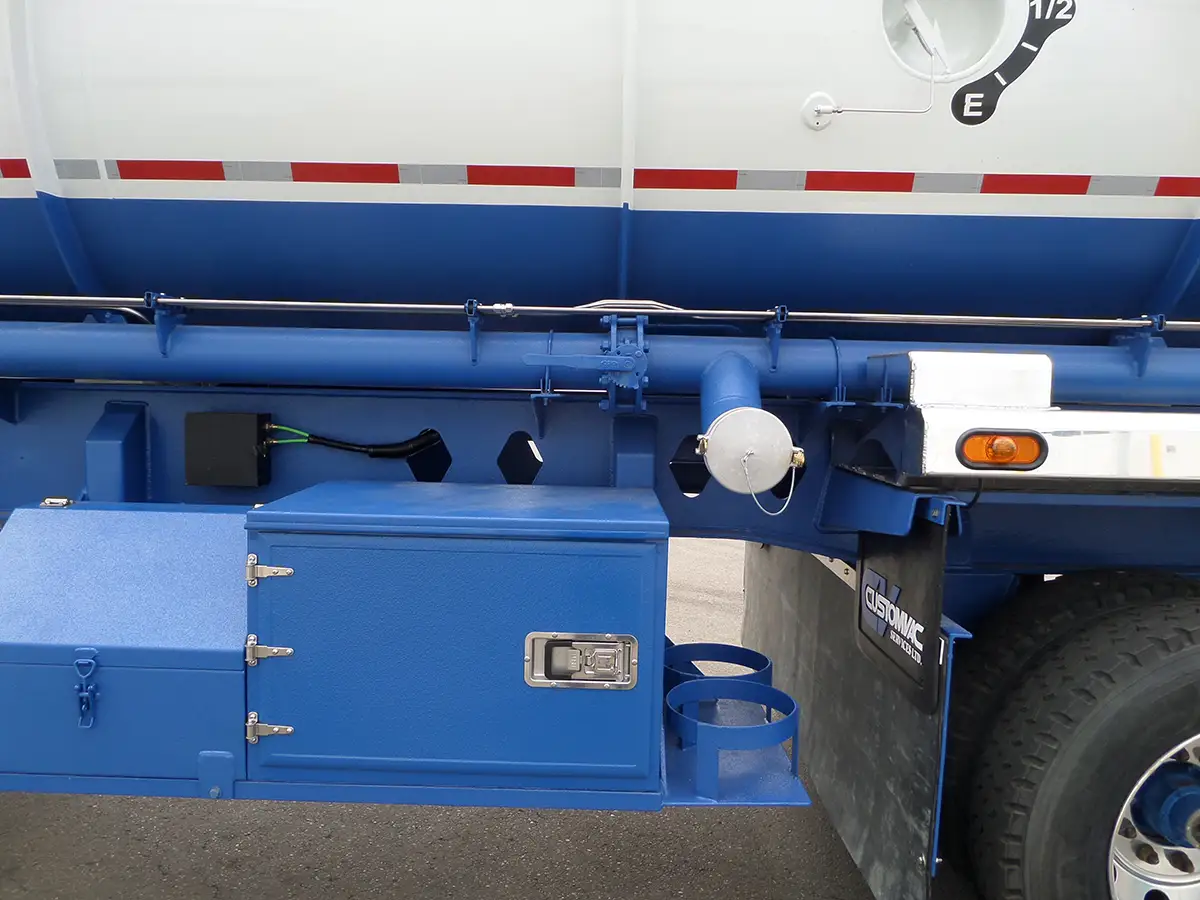

Toolboxes

  • 27 1/2” H x 16 1/2” D x 22” W steel fitting box c/w steel door D/S
  • 36” H x 24” D x 24” W steel toolbox c/w steel door and pail holders

Frame, Decking, Trim

  • 3” x 6” steel H-frame—Transport Canada compliant
  • Heavy duty outriggers
  • 4 Placards
  • Squeegee/shovel rack
  • Two 12’ 1/8” checker decking—front
  • Trailer aluminum hose trays—back
  • Code rear bumper
  • Mud flaps c/w anti-sail brackets
  • Two tire chain holders (slide out style)
  • Two pail holders (attached to the tool boxes)
