Pony Trailer (Stiff Pole Pup)

Features

16m3 Complies with CSA B620, TC 407/412 – Current Edition

  • 16 m³ – 3740 Imp Gal +/- 3% outage
  • Full opening hydraulic rear door, Hoist cylinder and Vibrator
  • 1/8″ checkered mild steel/fender assembly, rear skirt and bumper
  • 6″ Plumbing, 6” Composite loop hose Victaulic clamped
  • 6″ Load valve lower center with 4″ sandpipe D/S and 4” P/S. All valves pneumatically operated.
  • Steel undermount deck box
  • D O T Lighting as required c/w L.E.D. work lights
Configurations & Specs
Contact Sales
Rigged & Ready Trucks

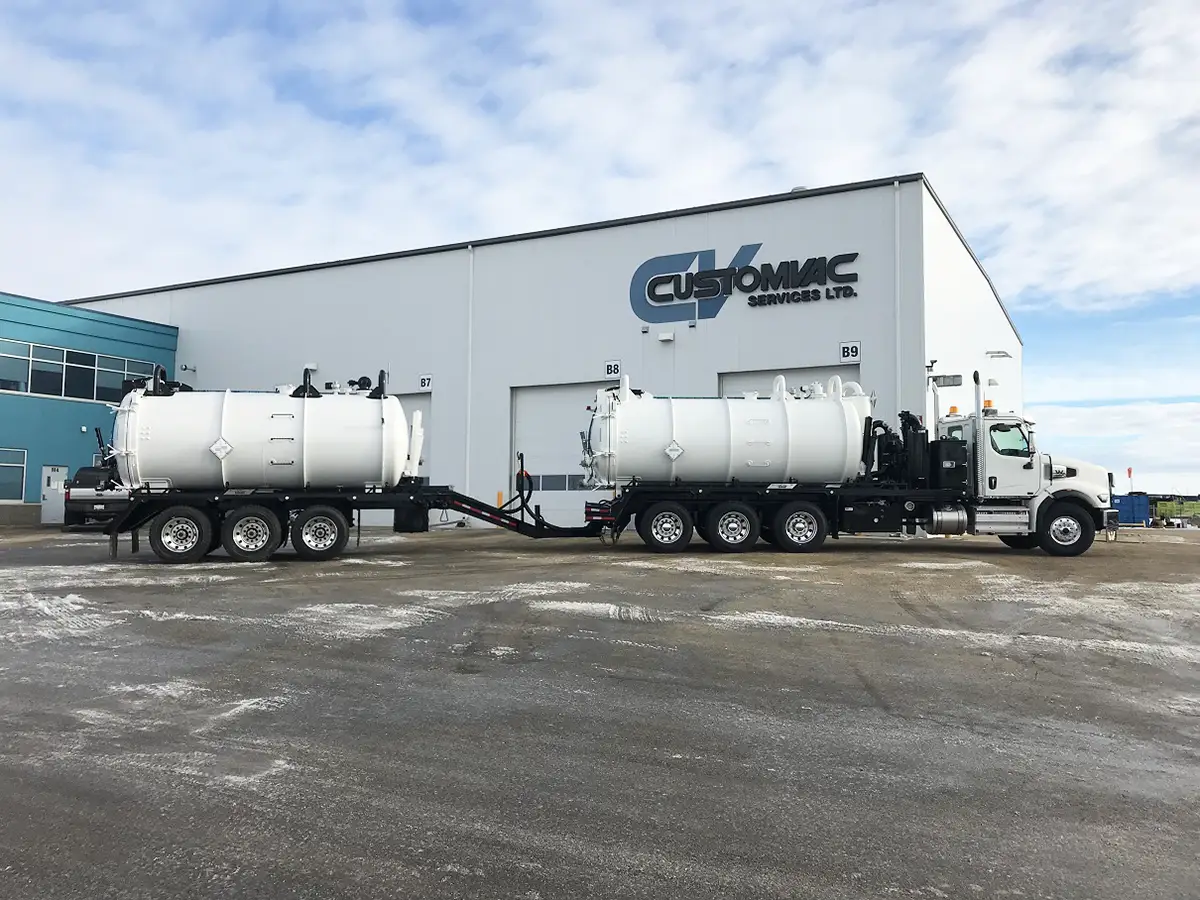

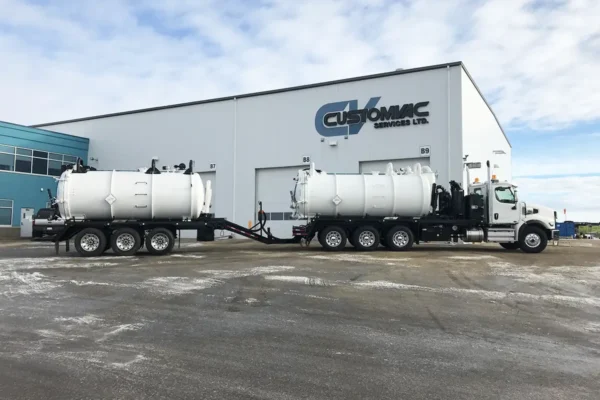

Pony-Trailer-03

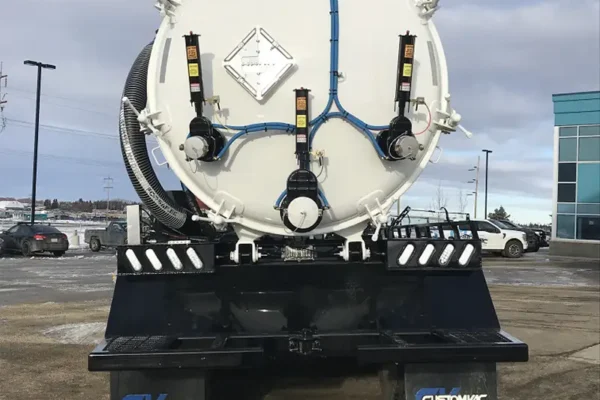

Pony-Trailer-04

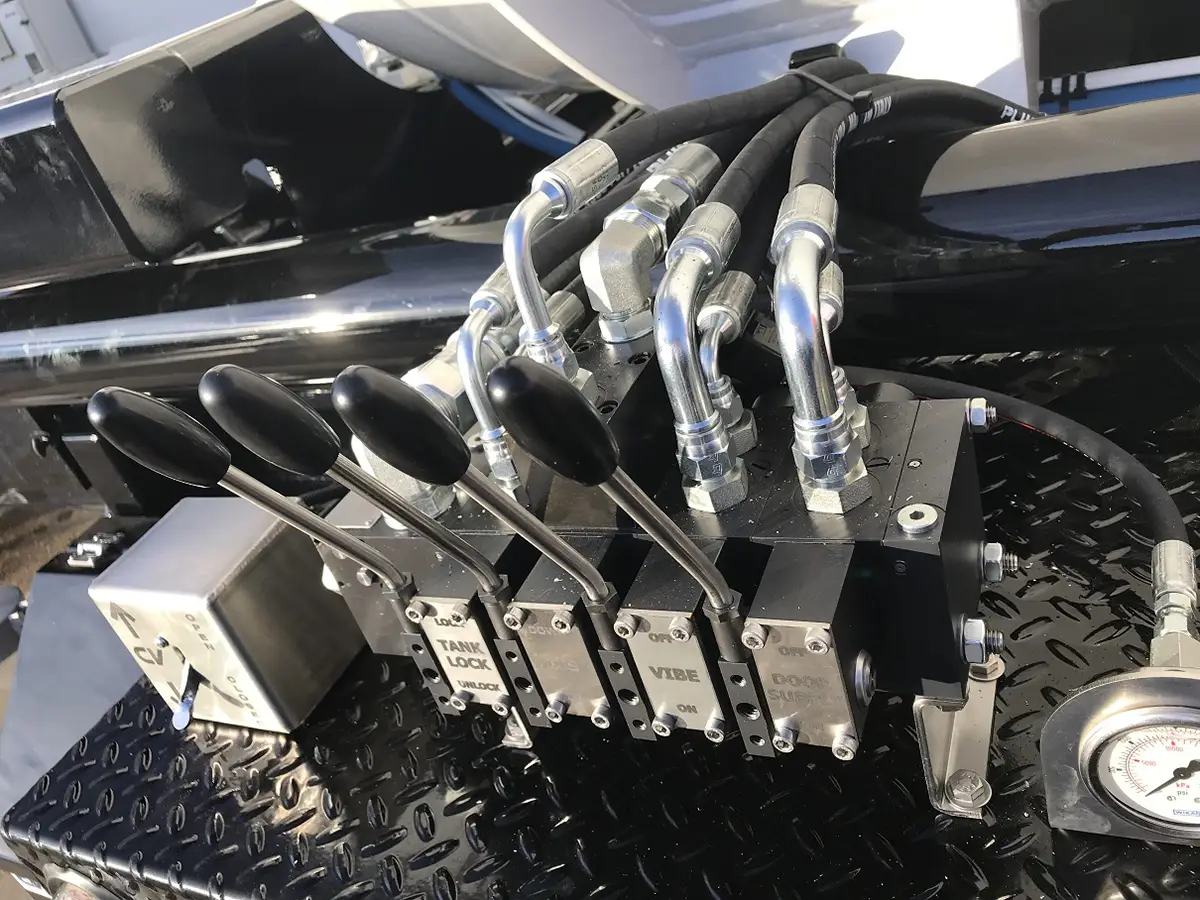

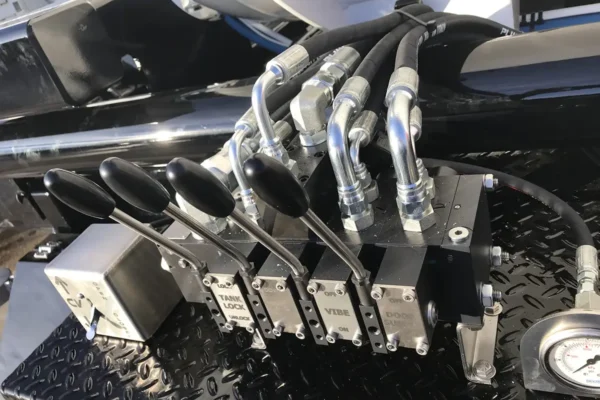

Pony-Trailer-01

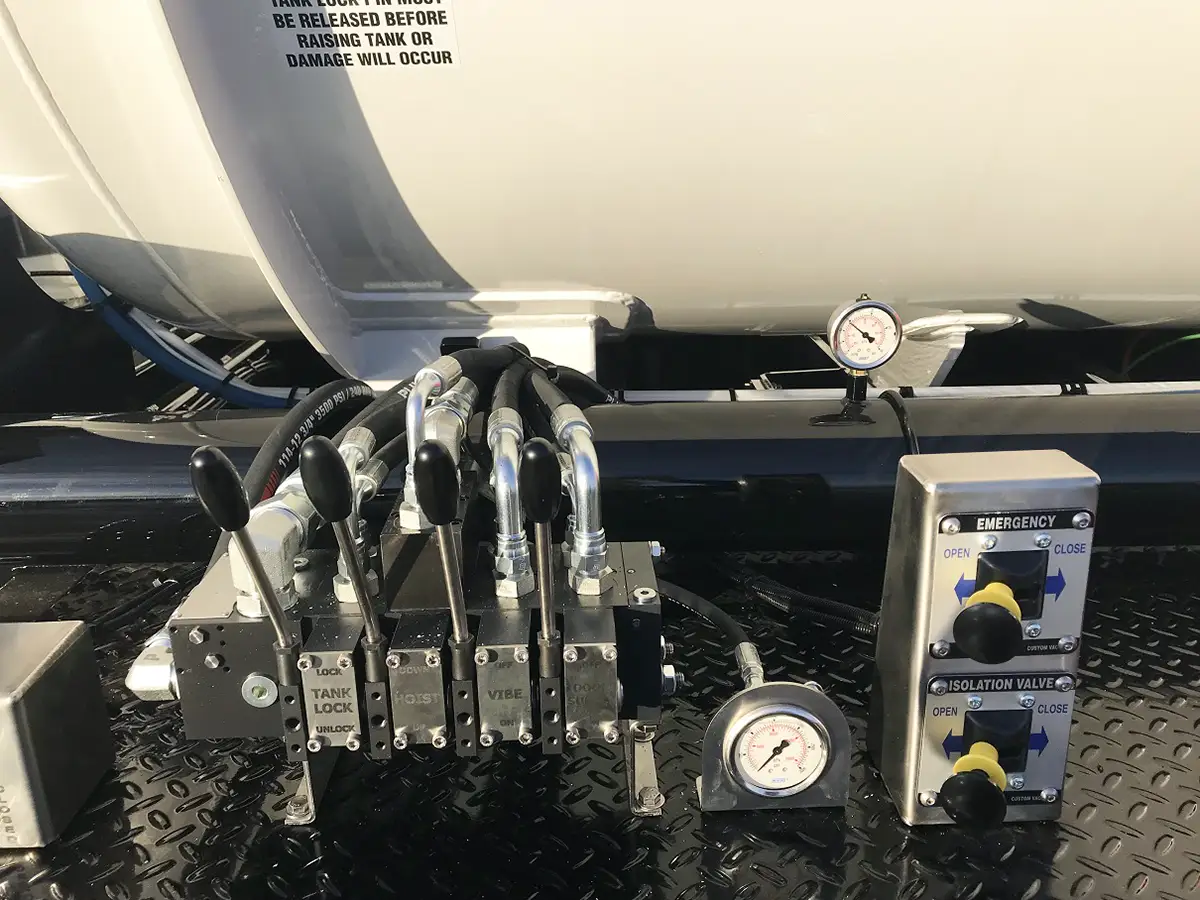

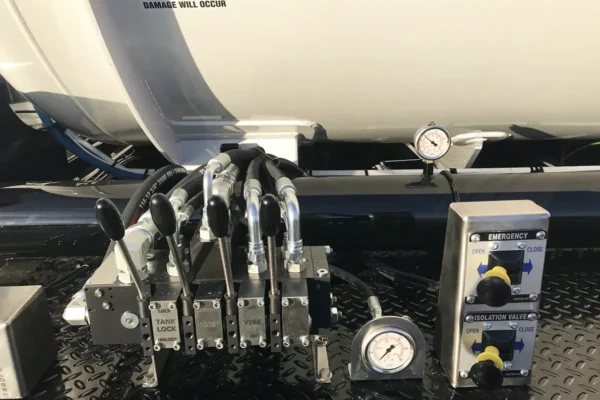

Pony-Trailer-02

Specs & Configurations

Standard Configuration

Custom Vac CV85 Vacuum System (Tri-Drive Mounted)

Design:

Tank Construction, tank design and associated equipment are compliant with Transport Canada TC407/412 CSA B620 current edition and ASME section VIII Division 1, as enforced by ABSA Boiler and Pressure Vessel Code.

Debris Tank 16 m³ (3520 Imp Gal +3% Outage):

  • 78″ Diameter x 17’ seam to seam
  • Global hydraulic vibrator
  • 3 stage double acting hydraulic hoist cylinder
  • Full opening hydraulic lift rear door c/w locking style top hinge and 6 pin wheel door locks
  • Recessed liquid level indicator on the D/S c/w indicator with grab handle
  • Rear door top lock assembly and tank safety post
  • Operating Temperature -20 degrees F to 200 degrees F
  • 8″ Primary internal shutoff c/w 6” SS float ball/cage and rubber seat assembly with 6″ flanged outlet and isolation valve
  •
  • 4” Betts load valve c/w 6″ sandpipe and aluminum camlock/cap D/S
  • 4″ Betts load valve c/w aluminum camlock/cap P/S
  • 6” Betts discharge valve c/w aluminum cap (Center) All rear valves heated, air and equipped with flip style valve controls
  • All rear valves heated, air actuated and equipped with flip style valve controls

Decking, Trim

  • Full length 1/8” checker plate hose tray/fender assembly with heavy duty outrigger supports & 1-1/4” steel tubing handrails, close in plates
  • Ladder P/S
  • Code rear bumper (flip up style)
  • Slide out style chain hangers
  • 4 flip style placards
  • Mud flaps c/w anti-sail brackets
  • 20 lb. fire extinguisher with mounting bracket and cover
  • 50’ ground cable c/w reel

Toolbox

  • 27 1/2” H x 16 1/2” D x 22” W with fitting box D/S undermount box

Paint / Coating

  • Entire tank and body of vacuum system will be sandblasted, primed and painted up to 2 colors
  • 17” O/S with rebound chains and mounted @ 50” spread
  • Suspension control box, control and levelling valves
  • 77” track width, automatic slack adjusters, 30/30 brake pots 16 1/2 x 7” brakes, 10 long stud Uni-mount hubs and steel drums
  • 2S1M ABS system
  • 11R x 24.5 Load rating H
  • Aluminum 24.5 x 8.25 tubeless (inside wheels machine finished & outside wheels polished on outside dished face
  • 10,000 lb. crank down jack trailer jack
  • 47” outside frame width
  • Cross members as required
