Our Line of Top Quality Vacuum Equipment

Hydro Vac

(Non Code)
Features

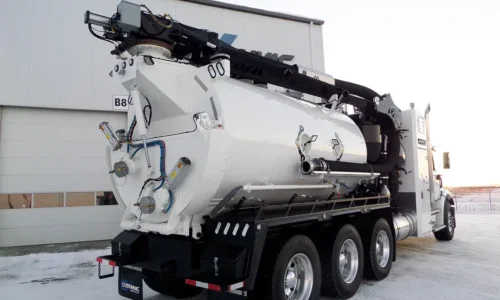

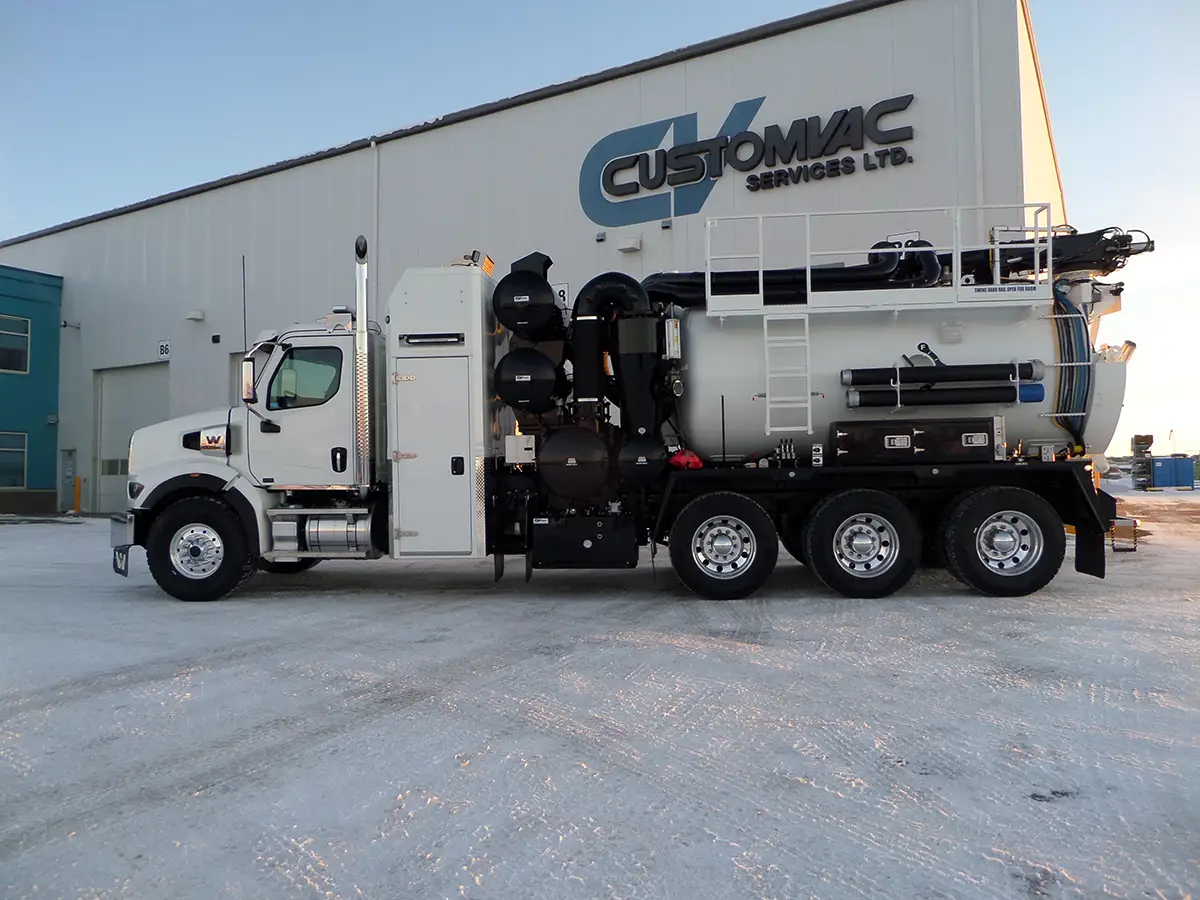

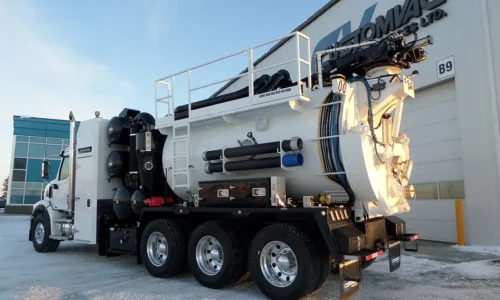

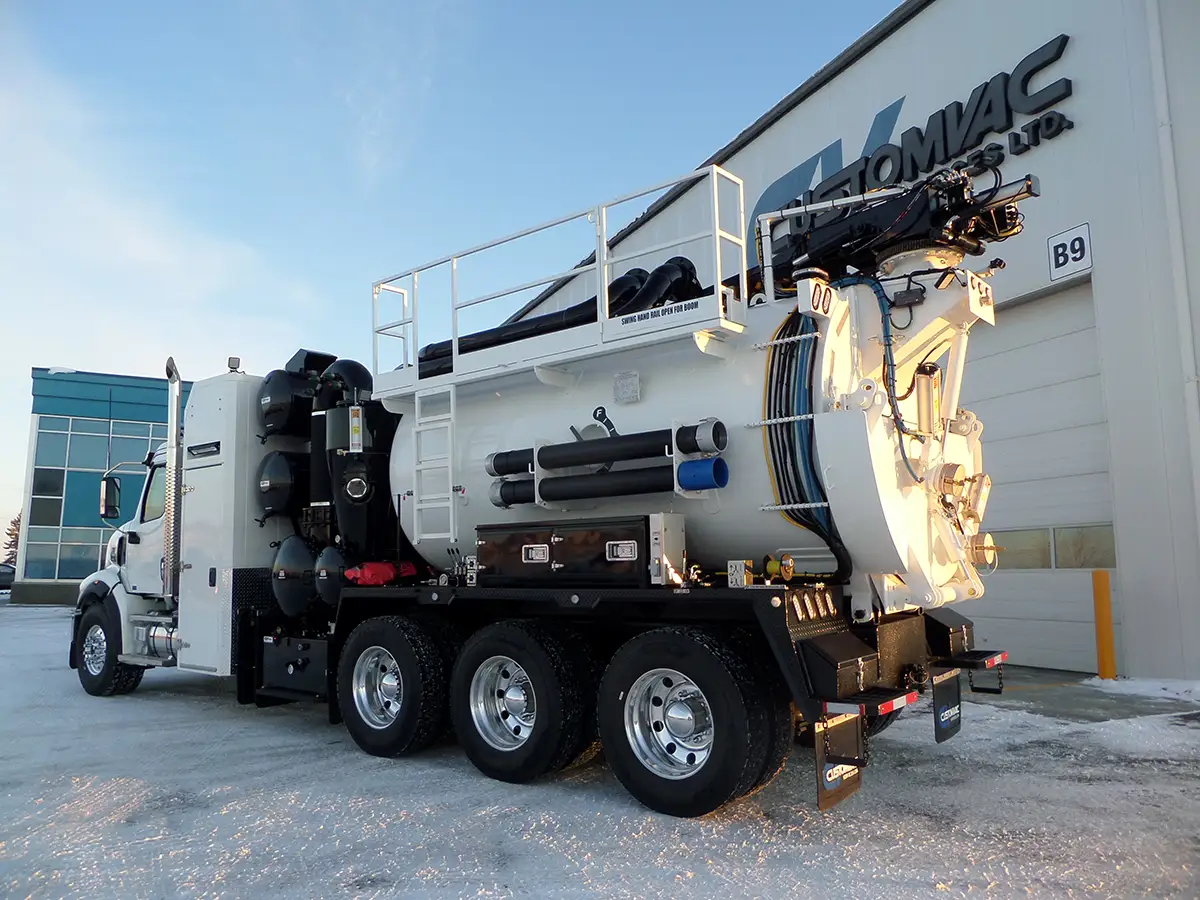

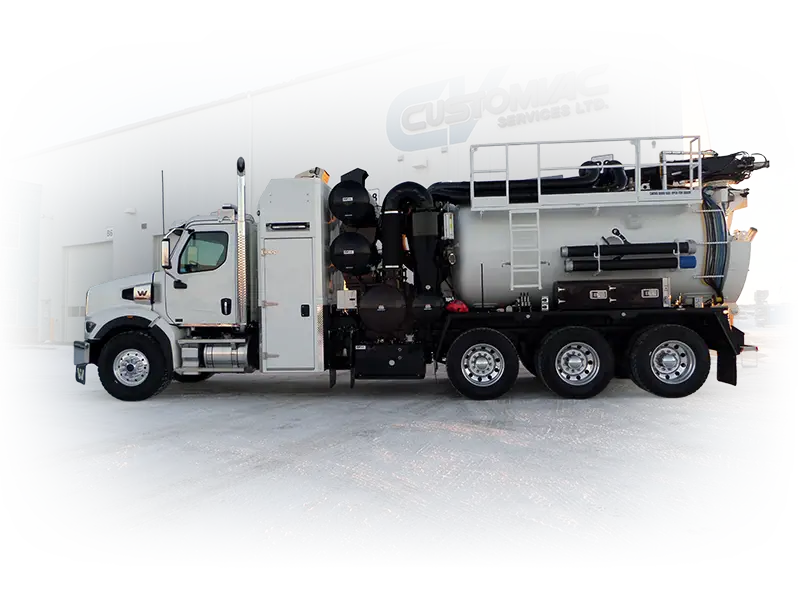

Tri-axle Hydro Vac
(Non-Code – Not designed for Dangerous Goods Operations)

Tank & Vacuum Equipment

  • 13 cube capacity (8m3 debris and 5m3 water)
  • Robuschi 145 – 6400 CFM Free air rating@ 27″ Hg maximum vacuum, driven with a Namco transfer case
  • Hydraulically operated D door in rear that
  • 6″ brass load valve and 8” brass discharge valves
  • 12 knife gate. 8″ hydraulic top mount boom c/w wireless remote and wired pendant

Wash System

  • Custom Vac “in house” manufactured Aluminum 40″ Crossover cabinet (standard), heated and insulated with excellent interior and exterior lighting
  • Wash system c/w Cat 3560 triplex plunger pump capable of 20 GPM at 4000 PSI
  • Hotshot 120 volt heater, 980,000 BTU/hr hot water heater
  • Hydraulic hose reels
Configurations & Specs
Contact Sales
Rigged & Ready Trucks
hydrovac-photo-006

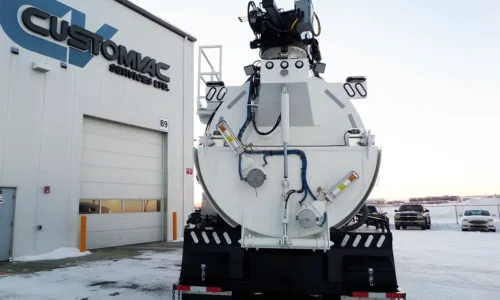

hydrovac-photo-009
hydrovac-photo-008

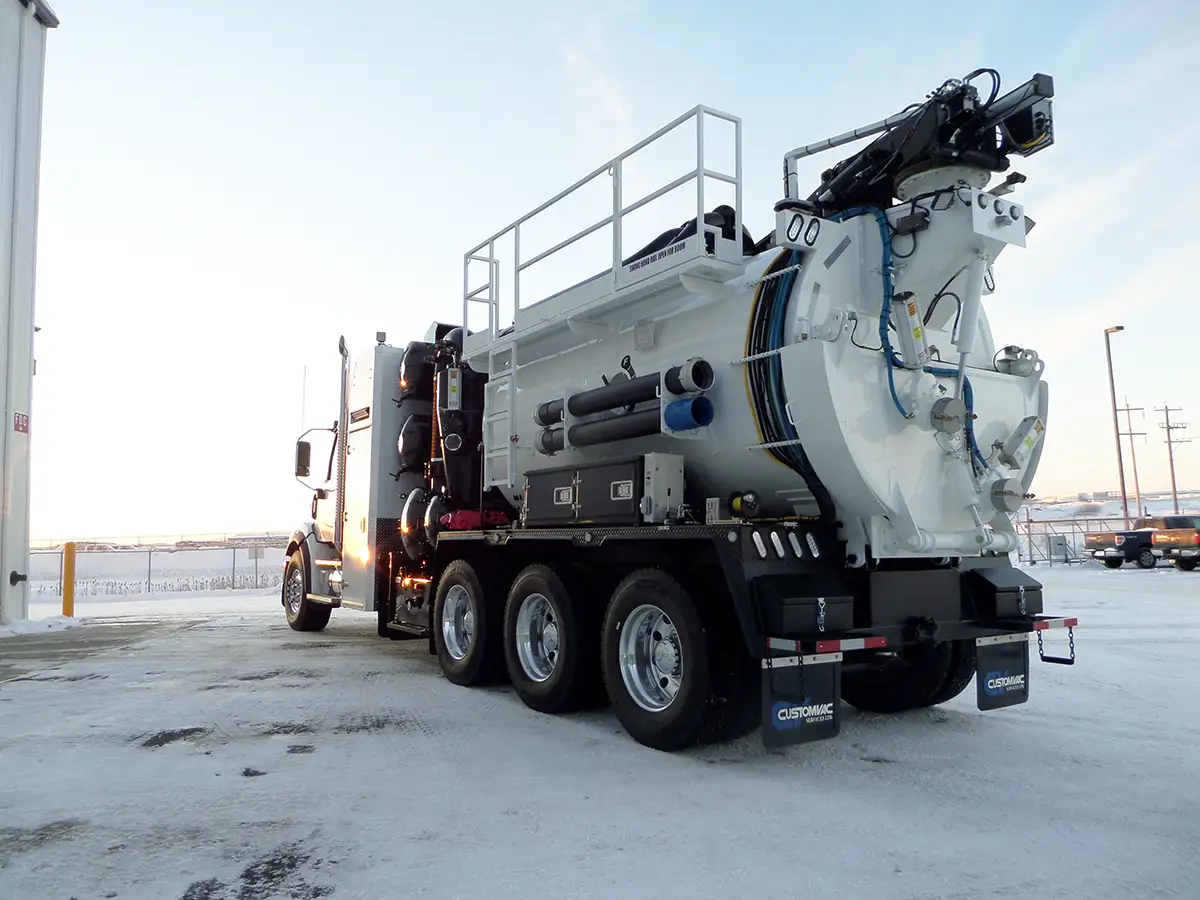

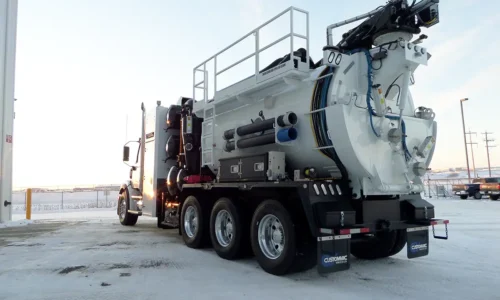

hydrovac-photo-010

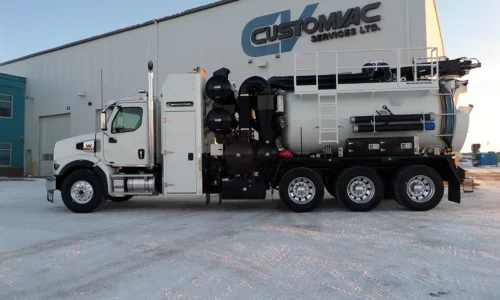

hydrovac-photo-007
hydrovac-photo-004
hydrovac-photo-003
hydrovac-photo-002
hydrovac-photo-001
hydrovac-photo-005

Specs & Configurations

Standard Configuration

Debris Tank 8 Cubes (1,760 Imp Gal +3% Outage):

  • 78″ Diameter x 7’ 6″ seam to seam
  • Global hydraulic vibrator
  • 3 stage double acting hydraulic hoist cylinder

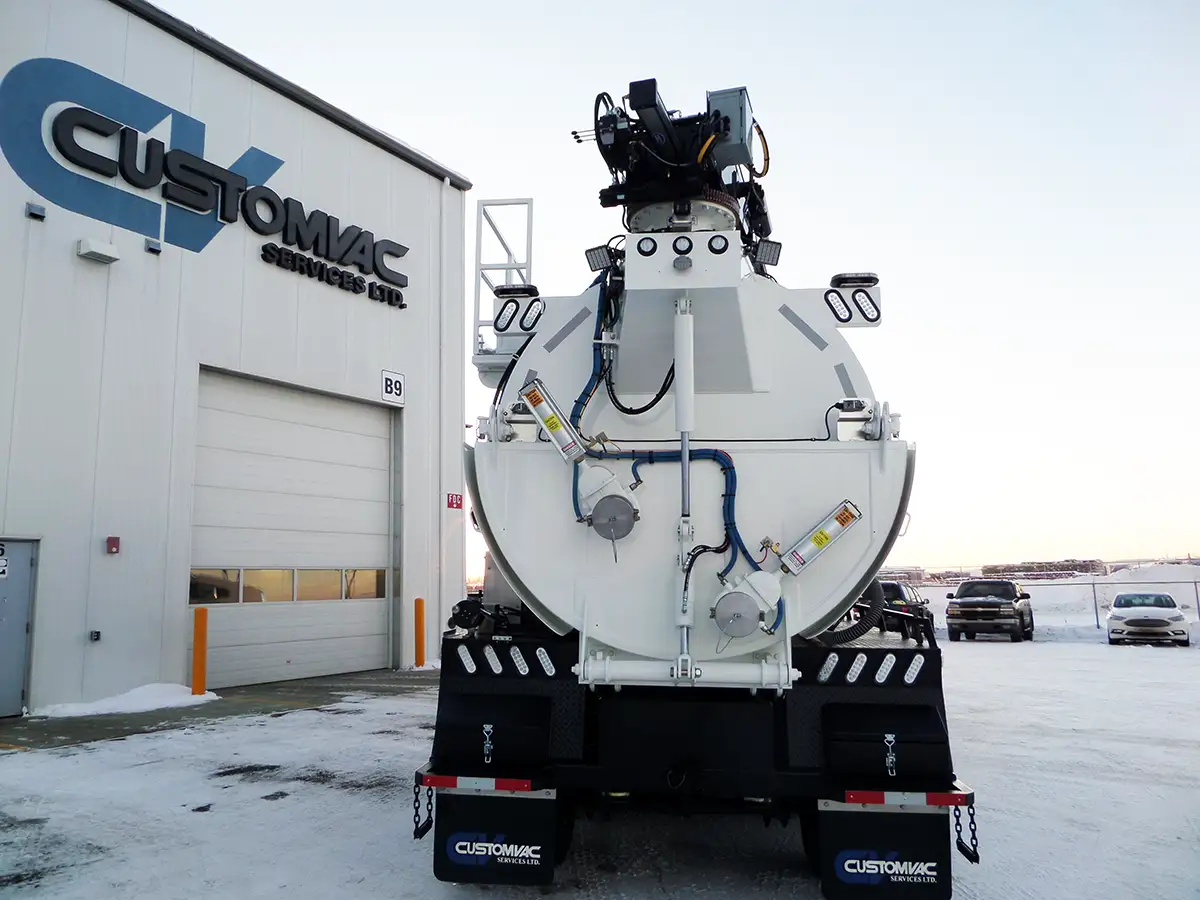

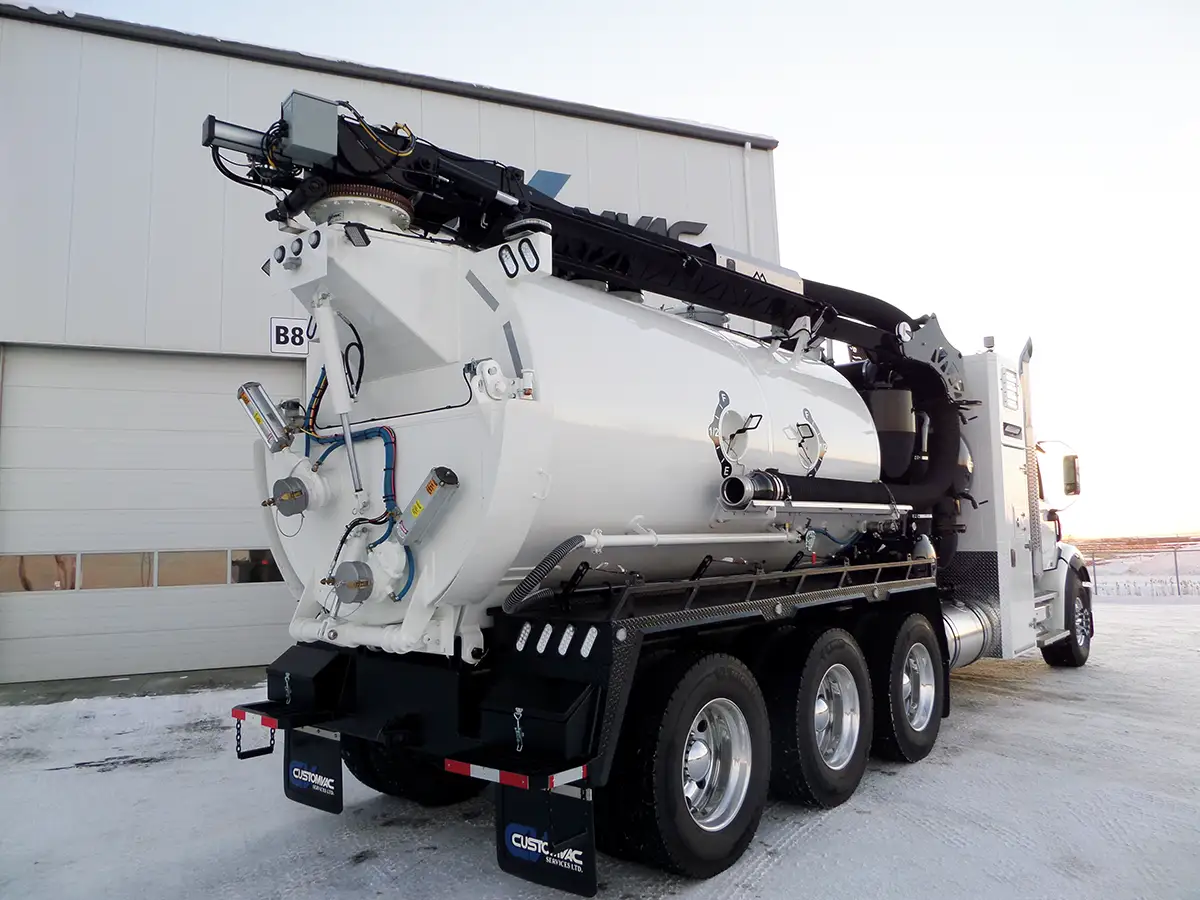

  • D style hydraulic lift rear door c/w locking pins at top hinge point. Over center hydraulically operated cams to operate rear door
  • Two recessed liquid level indicators D/S and P/S c/w indicator with grab handle
  • Tank safety post

Water Compartment 5 Cubes (1,100 Imp Gal ):

  • 78″ Diameter x 5’ 6″ seam to seam
  • 20″ Manway
  • Recessed liquid level indicators on P/S c/w indicator with grab handle
  • 2″ Heated Breather, fill and suction c/w Riser/Vent Pipe
  • 2″ Heated Drain Valve c/w air actuated valve. Switch control at operator station
  • 2″ Heated hard piped supply line, c/w composite loop hose and valve.  Direct connection through wash cabinet to wash pump
  • 2″ Vacuum Changeover Valve & Air Control switch at Operator Station
  • Catwalk, back rail and ladder D/S
  • 6” brass load valve c/w aluminum camlock/cap P/S
  • 8” brass discharge valve c/w aluminum camlock and cap (Center)
  • All valves heated and manually operated
  • Robuschi RB-DV 145 – 6400 CFM PD Blower 27” Hg Maximum Vacuum
  • A Namco transfer case will be installed into the truck drive system to accommodate the blower assembly
  • Oil Free Operation (Except Sealed Reservoirs)
  • One 26” exhaust silencer, one 26” intake silencer both in horizontal mount configuration
  • Dual 8” cyclones will be mounted on the D/S will come with 20” drop box and 3” brass drain valves
  • Pre-Stage filter housing c/w 20” diameter inline SS fiber filter element with 20 micron rating
  • Diesel flush ball valve assembly

8″

Wash Cabinet:

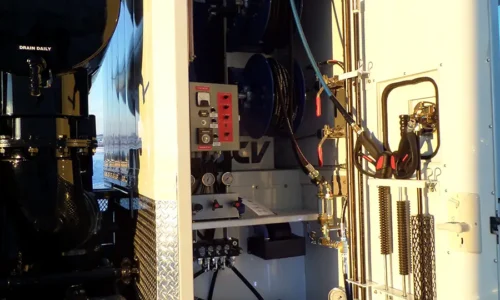

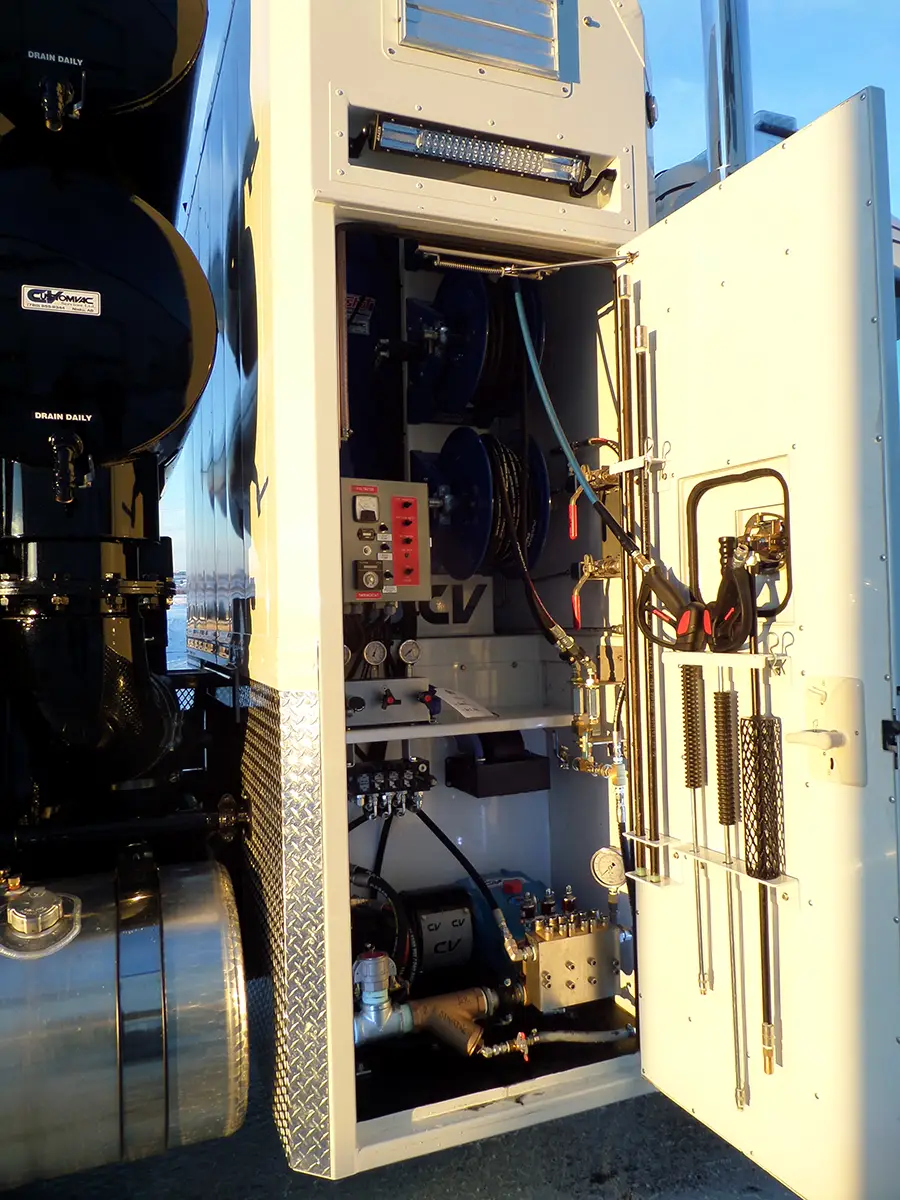

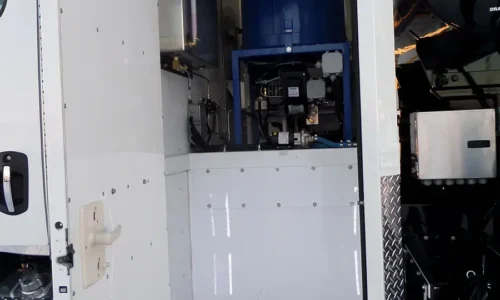

  • Custom Vac “in house” manufactured Aluminum 40″ Crossover cabinet (standard), heated and insulated with excellent interior and exterior lighting
  • Small door in large door for hose access P/S

***NOTE*** These cabinets are also available in a 60” design

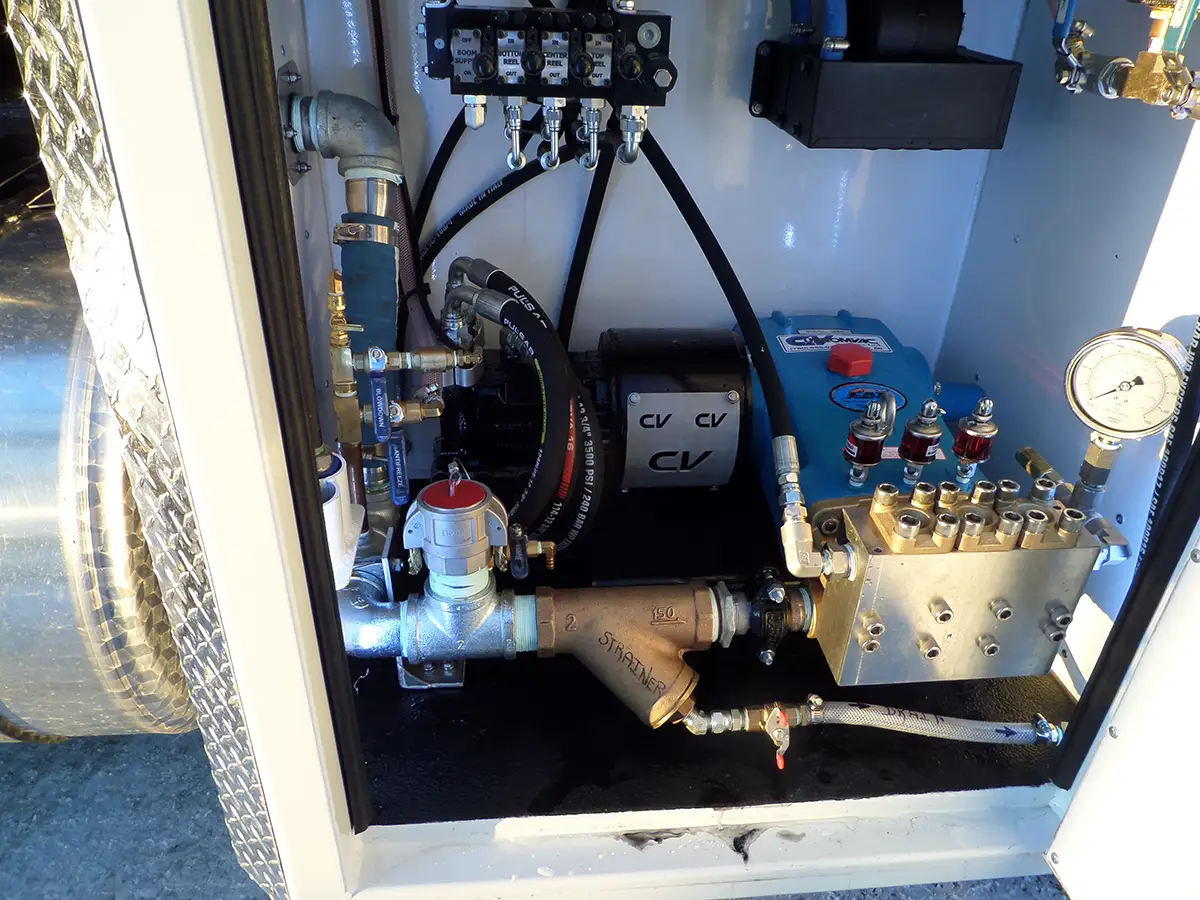

Standard Wash System  (Access on Passenger Side):

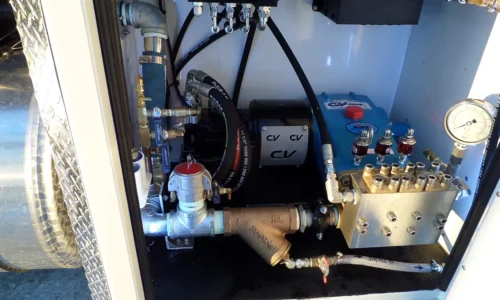

  • Cat 3560 Triplex plunger pump (Rated 20 GPM @ 3000 PSI Max)
  • 2″ Stainless Steel strainer,
  • Two Hydraulic Hose Reels (100′ x 3/8″ pressure hose and 100′ x 3/8″ temperature rated steam hose).
  • Pressure trigger guns, wand, nozzle and quick coupler
  • Stainless Steel glycol and soap tanks
  • Steam wand, nozzle and quick coupler
  • Degreaser assembly c/w gun, wand and nozzle

Hot Water System:

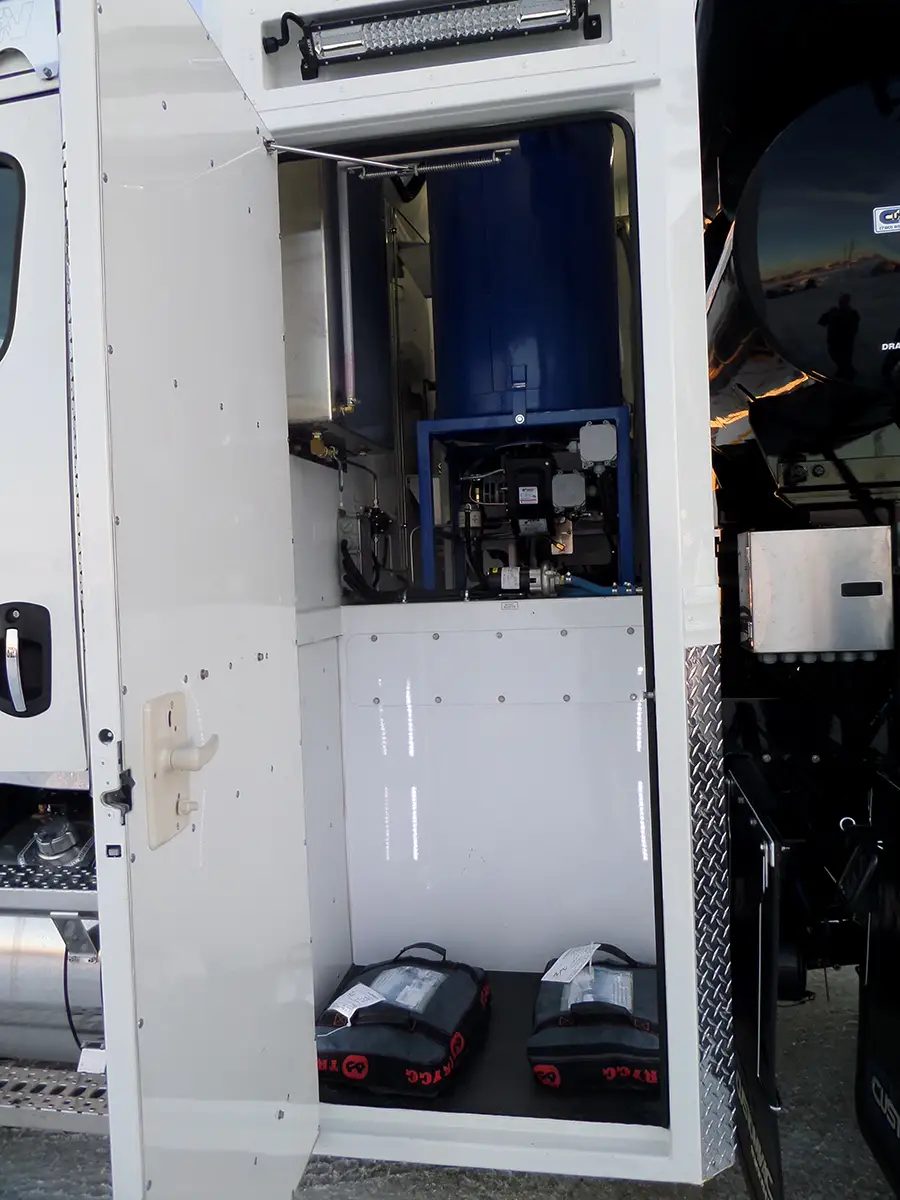

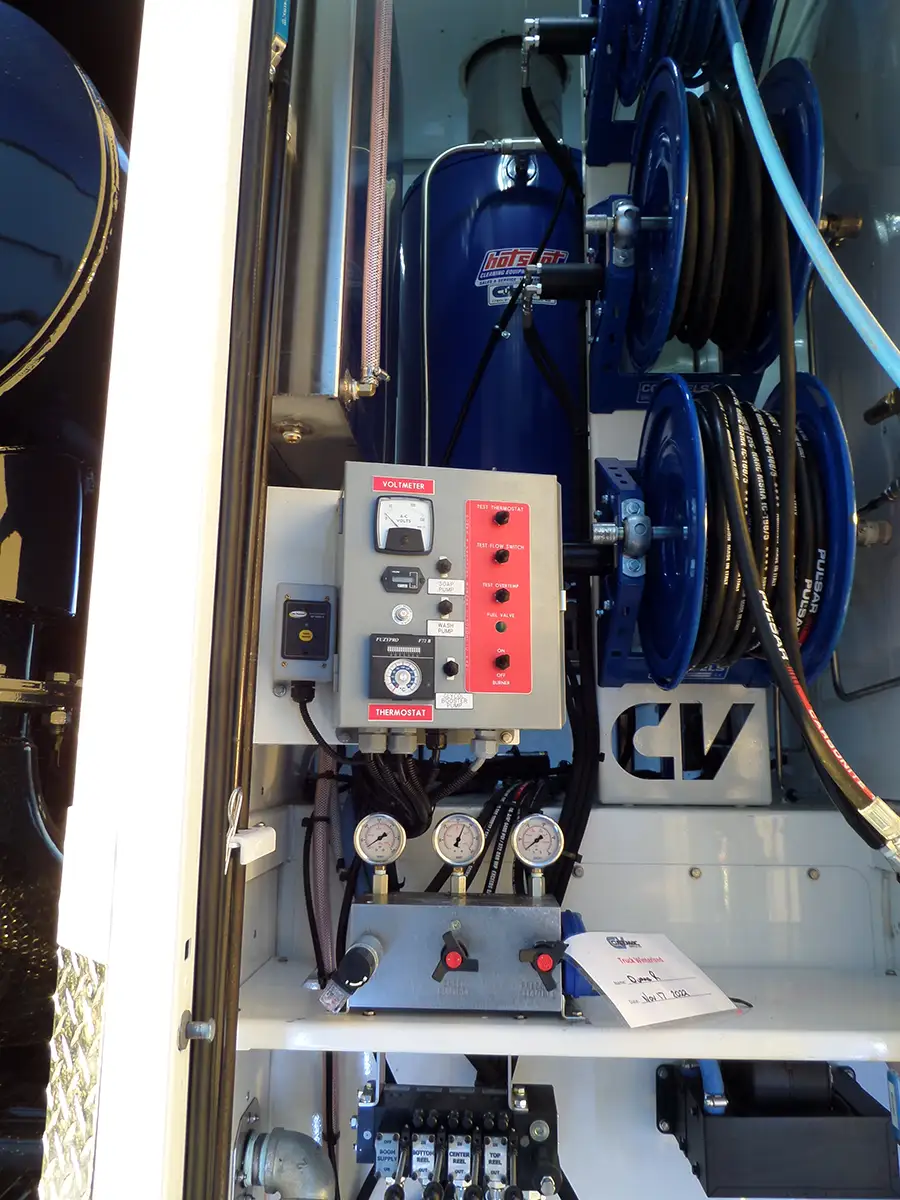

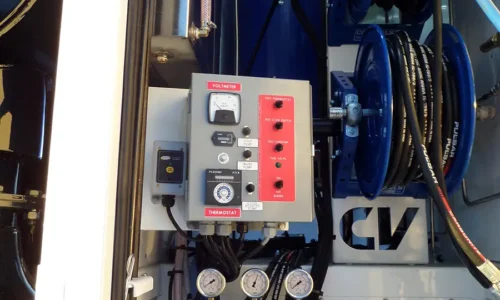

  • Hot Shot 980,000 BTU/hr Burner c/w Honeywell control, relief valves temperature gauge Wet steam kit, Diagnostic panel
  • 18 GPM Solid Brass Flow Switch with no bypass line
  • 3000 Pure Sine inverter to operate the burner assembly
  • Custom Vac aluminum vent hood is installed above the insulated stainless steel burner vent stack
  • Glycol Flush Tank /Air Blown System
  • Hard piped plumbing in Stainless Steel where applicable
  • Rig to Pull Pup (Standard)
  • Dog house
  • Hydraulics as required c/w hose and fittings to operate trailer functions

Toolbox

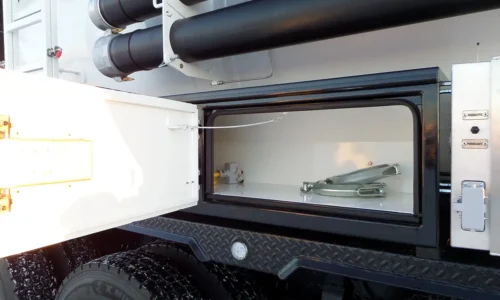

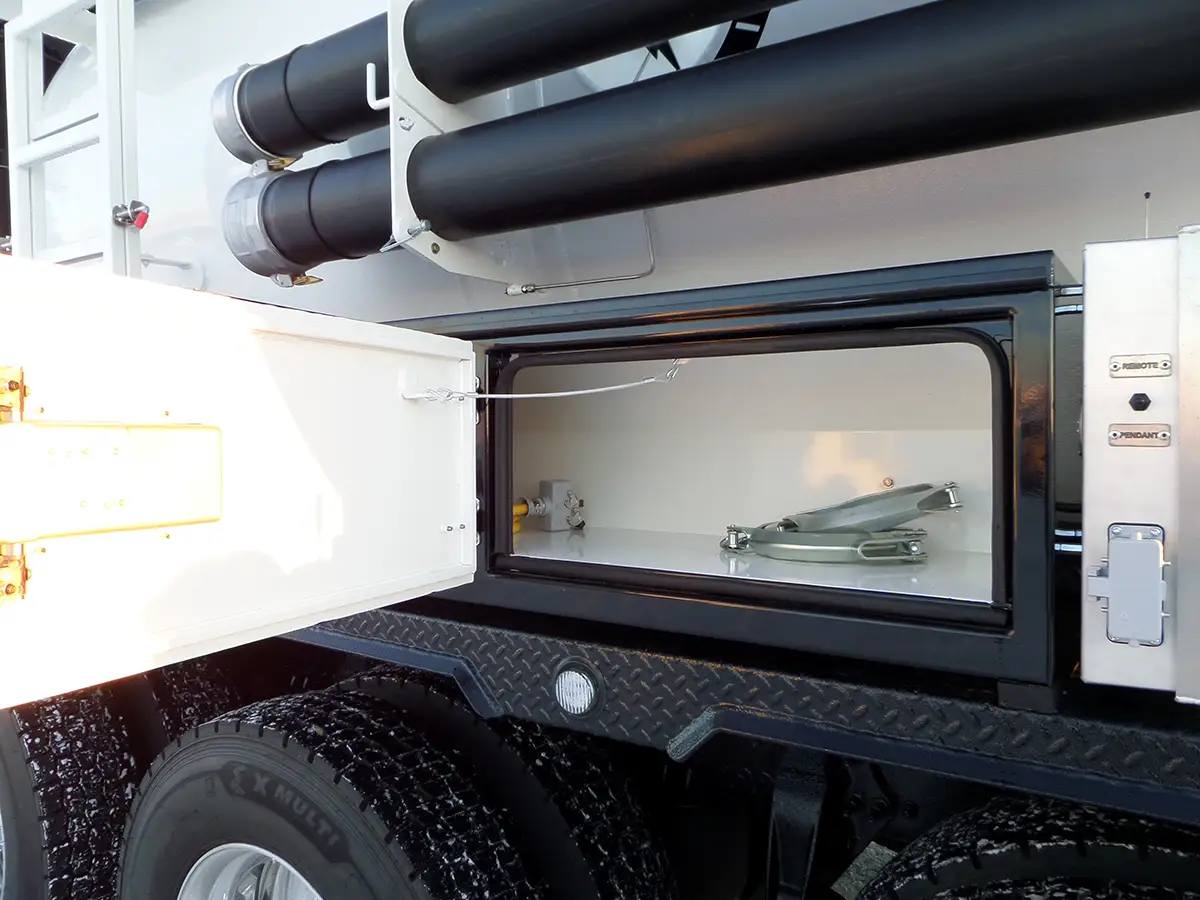

  • One 60” W x 12” D x 17”H steel box c/w 2 access doors D/S
  • 2 rear skirt fitting boxes

Paint / Coating

  • Entire tank and body of vacuum system will be sandblasted, primed and painted up to 2 colors
  • Water compartment internally lined

Frame, Decking, Trim

  • Full length 1/8” checker plate hose tray/fender assembly with heavy duty outrigger supports & 1-1/4” steel tubing handrails, close in plates
  • Ladder and platform P/S
  • Code rear bumper (flip up style)
  • Slide out style chain hangers
  • 4 flip style placards
  • Mud flaps c/w anti-sail brackets
  • 20 lb. fire extinguisher with mounting bracket and cover
  • 50’ ground cable c/w reel
