822 Combo Vac

Tank Design:

Vessel designed and constructed in full compliance with Transport Canada
TC 407/412 and CSA B620-09

• Tank diameter 78″ (12′ seam to seam)
• 78″ x 5/16″ F & D heads
• 78″ x 5/16″ shells
• Formed angle front & rear pedestals
• Three 4″ roll bars
• Three external reinforcement rings
• Reinforcing pads for all tank attachments
• Tank Lock Down Assembly to meet current B620 Code
• 8″ Primary shut-off assembly with 8″ flanged outlet
• 8″ isolation valve @ shut-off air actuated
• Recessed liquid level indicator D/S

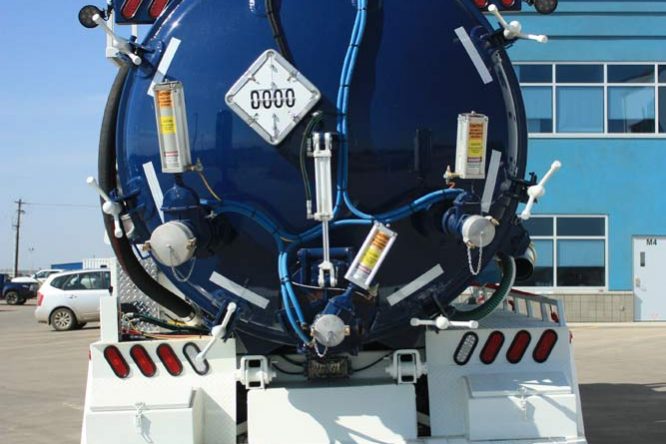

• Full opening rear door c/w six pinwheel door locks
• 6″Brass Suction valve c/w 6″ sandpipe, aluminum camlock/cap D/S
• 4″Brass Suction valve c/w aluminum camlock and cap P/S
• 12″ Hydraulic flange mounted mud gate with sliding lock mechanism and 4″
• Brass valve with aluminum camlock and cap
• All rear valves heated, and equipped with air/open- spring/close air actuators
• Control switches
• Operating Temperature -20 deg F to 200 deg F
• Vessel hydro tested to 40 PSI

Vibrator:

• Global hydraulic vibrator assembly mounted on bottom of tank with reinforcement pads, heavy duty mounting channel and pressure relief valve.

Pressure Relief:

• One 3″ x 30 PSIG pressure relief vent
• One 2″ PRV in lower suction pipe
• 2″ vacuum breakers installed on exhaust silencer

Gauges:

• Gauge assembly with tank vacuum/pressure gauge, hydraulic pressure gauges.
• Blower temperature gauge – remote mounted on D/S.

Blower Specifications & Allied Equipment:

• Hibon SIAV 822
• 2650 CFM free air rating
• 27″ Hg Maximum Vacuum@ sea level
• 8′ Four-Way Diverter valve ( Vacuum to Pressure Mode )
• 8″ Double door check valve ( to prevent blower back spin )

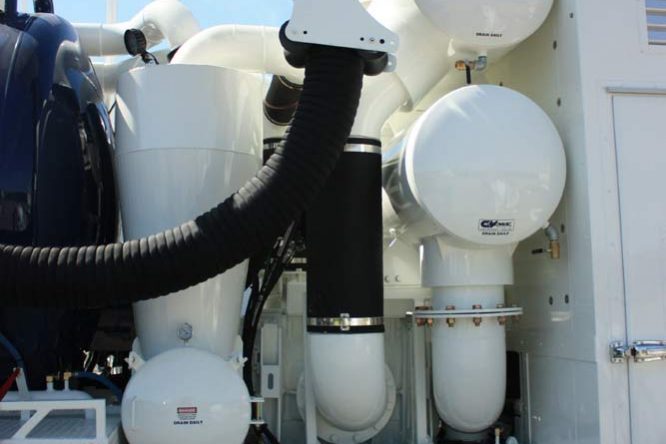

• Prestage filter assembly c/w 16″ filter
• One intake silencer, One exhaust silencer

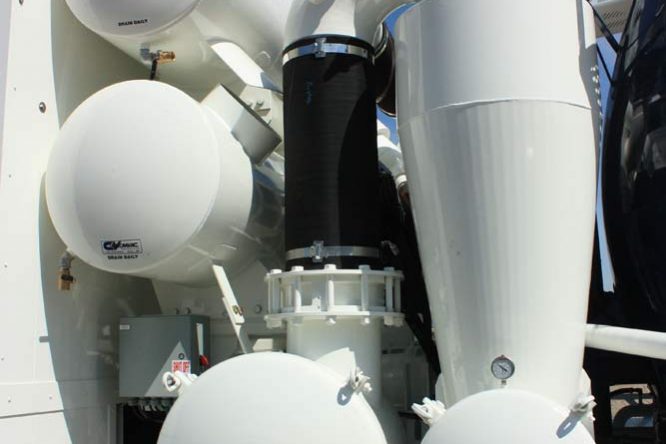

• 8″ cyclone with bottom cleanout door & 2″ heated drain valve

Hydraulic System (Linde closed loop design) :

• 8 Bolt PTO for blower
• 6 Bolt PTO for wash
• Hydraulic pump and motor for blower
• Hydraulic pump and motor for Triplex pump
• Tandem gear pump for Auxiliary functions
• High torque/temp drive coupler with flex insert
• Spool type valve control bank for pump and allied functions
• Rear control section for door and Dumpgate on deck  D/S
• Joystick speed control for blowe
• Torque control for vac pressure
• 90 gallon oil tank c/w vent, site glass, filters, temperature gauge, and inspection hatc
• Two 12 volt oil coolers
• 3 stage hydraulic hoist cylinder

Boom:

• 8″ x 270 deg telescopic suction boom
• 12″ knife gate gate valve assembly with shear section
• Accumulator for knife gate code compliance
• 8″ boom hose with end
• One wireless remote controller
• One hard wired pendant controller for backup

Plumbing:

• 8″ piping c/w 8″ oil & gas loop hose

Vibrator:

• Global hydraulic vibrator assembly mounted on bottom of tank with reinforcement pads, heavy duty mounting channel and pressure relief valve

Pressure Relief:

• One 3″ x 30 PSIG pressure relief vent
• One 2″ PRV in lower suction pipe
• 2″ vacuum breakers installed on exhaust silencer

Gauges:

• Gauge assembly with tank vacuum/pressure gauge, hydraulic pressure gauges.
• Blower temperature gauge remote mounted on D/S.

Frame, Deck and Bumper:

• Full length subframe c/w 1/8″ checker plate hose tray/fender assembly
• C/w heavy duty outrigger supports,1-1/4″ tube handrails, close in plate.
• Code rear bumper with light boxes and rear tire skirt
• Subframe supports decking, rear hoist hinges & front hoist cradle

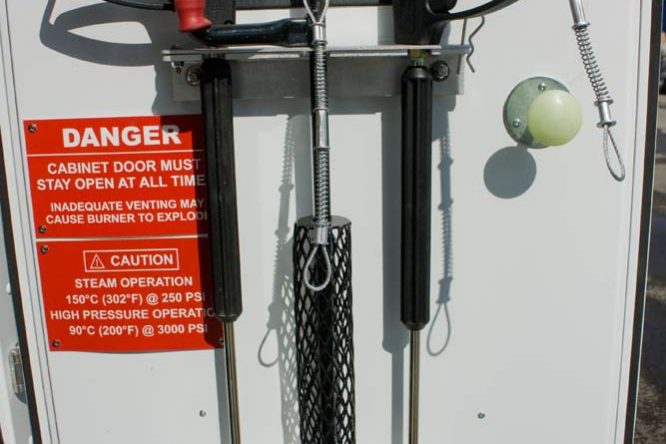

Cabinets:

• One steel 72″  three door deck box
• Two rear skirt fitting boxes

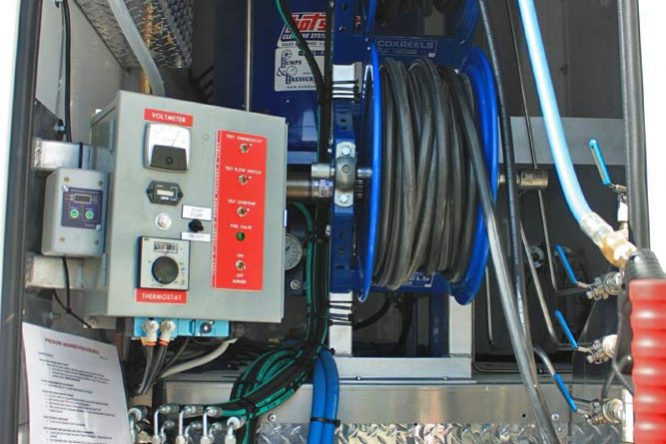

Electrical System:

• Waterproof main circuit control box self contained power supply
• Sealed wire harness c/w waterproof junction boxes
• L.E.D. lamps (Clearance, park, signal)
• Sealed L.E.D. reverse lamps
• Four L.E.D.  style work lights
• L.E.D. WORK LIGHTS on the Boom Frame
• Electrical system shut-down at key
• Sealed rear skirt lamp modules
• Stop and turn L.E.D sealed lamp modules on top ring of door.
• Back up alarm
• Truck cab and deck mount blower switches

Additional Equipment:

• Catwalk & ladder on upper suction pipe driver’s side.
• PTO Hour meter installed in truck cab
• Chain hanger, slide out style
• Mud flaps
• 50′ ground cable (wind up style)
• Ground studs mounted off rear peds D/S & P/S
• 30# fire extinguisher/Brkt/Cover
• Boom hose holders P/S
• Two 6″ x 5″ aluminum dig tubes with Band Clamp ends one with rubber tip
• One 8″ x  6″ x 4″ aluminum adapter

Paint:

• The entire tank and body of vacuum system shall be sandblasted, primed and painted with Endura paint
• Water Tank Lined With Devoe 233

Other Items:

• Operators manual issued with completed unit
• Unit includes (NSM) National Safety Mark
• One year Manufacturer Ltd warranty
